R5905948 /12 Event Master Devices466

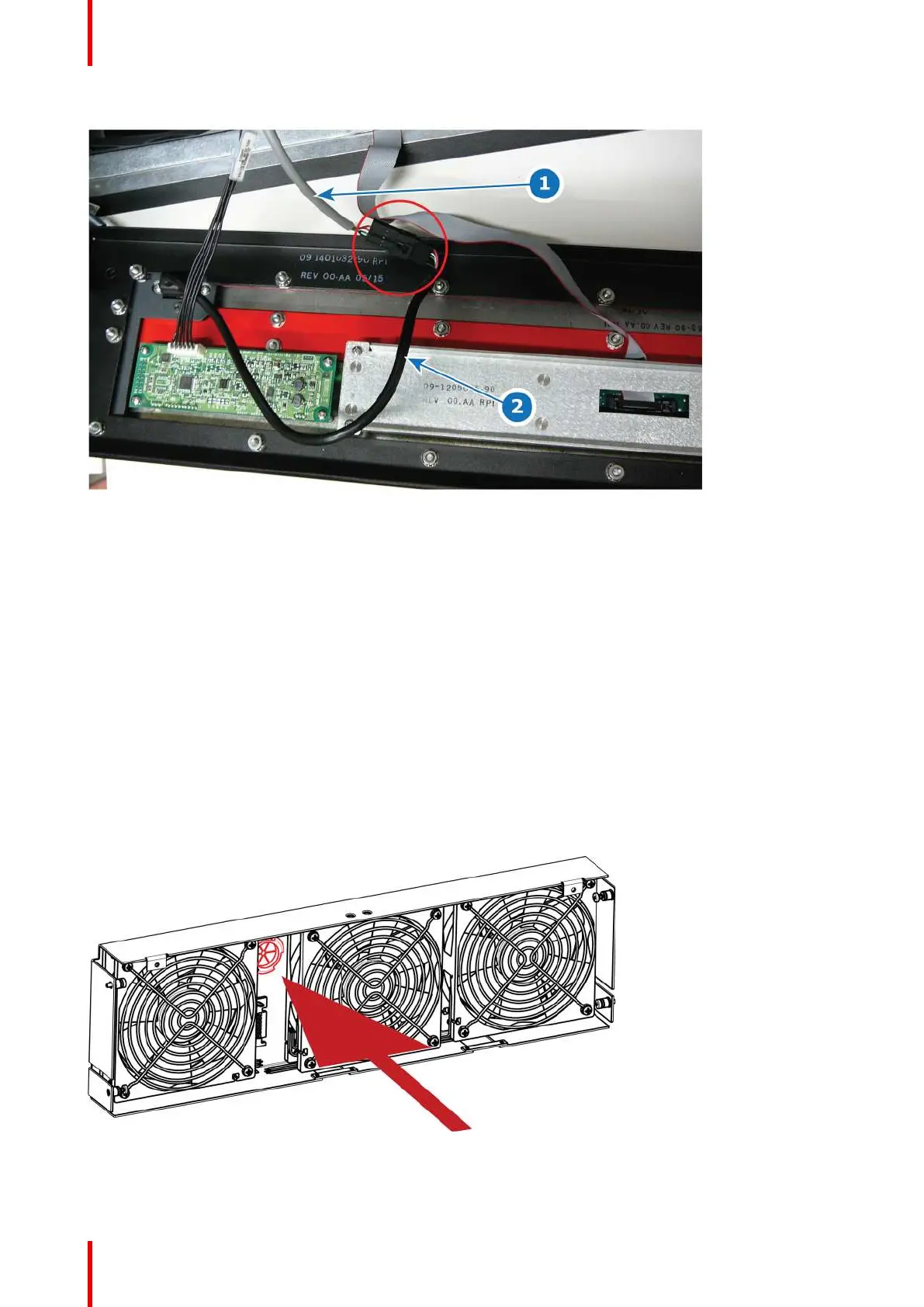

Image 15-36: USB Ext Cable connected to the USB Cable behind the front panel
1 USB Ext Cable
2 USB Cable
Concerned parts
R767283K Cable Kit Set
Necessary tools
1 x Phillips Screwdriver #2 (to remove the front panel assembly)
How to remove the USB Extension cable
1. Partially remove the front panel assembly and pull it away to expose the cables behind it (refer to the related
procedure).
2. Disconnect the USB Extension cable from the USB cable.
3. Gently push the cable through the grommet located in the 3RU Fan tray.
Image 15-37
4. Remove the 3RU Fan tray in order to access the motherboard (refer to the related procedure).
S3 Maintenance
