Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 499

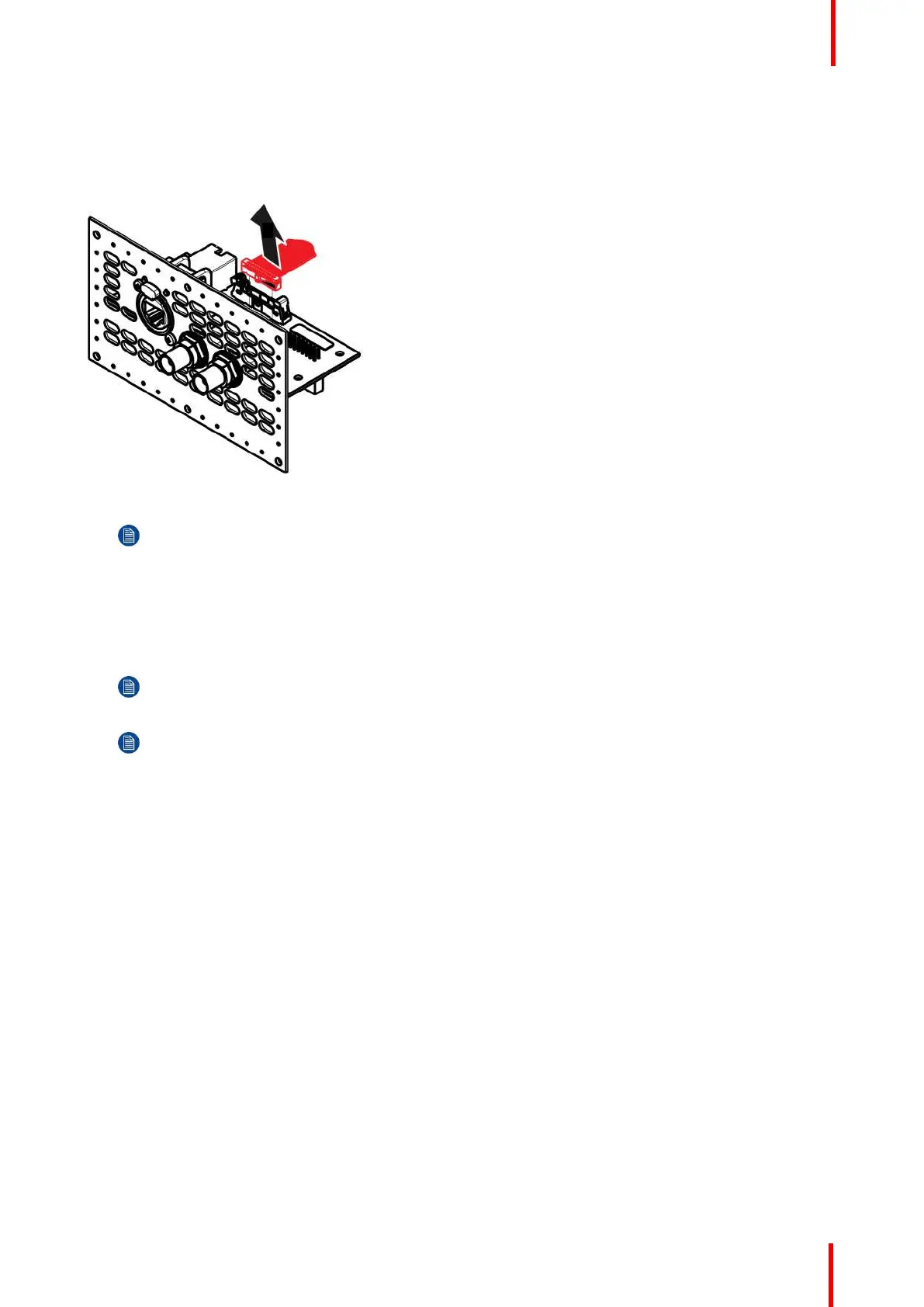

Image 15-99
Note: From this step, only the other end of the Genlock cable stays connected to the motherboard.
Unfortunately it is necessary to remove the motherboard from the motherboard mount to unplug it.
(refer to the “Process Overview”, page 448).
3. Remove the following parts to access the motherboard :
• Rear cards (VPU, Link, I/O)
• CPU module.
• Link card interposer.
Note: Refer to the related procedures to remove these parts. Remove these parts requires removing
lot of parts from the unit (Power supply, Power interposer, Power supply guide, Side Support Plate ...)
Note: It is not necessary to remove the solid state memory, the system battery and the other cables to
give access to the motherboard fixing screws.
4. Remove the Motherboard from the Motherboard mount.
1. Remove the three m/f standoffs (4-40 X 3/16” .25” ) that attach the Motherboard to the Motherboard mount.
2. Remove the five m/f standoffs (m2.5 X 8mm) that attach the Motherboard to the Motherboard mount.
3. Remove the sixteen long pan head SEMS screws (4-40x.31” — SEMS refers to an integrate lock washer)
that attach the Motherboard to the Motherboard mount.
S3 Maintenance
