R5905948 /12 Event Master Devices 123

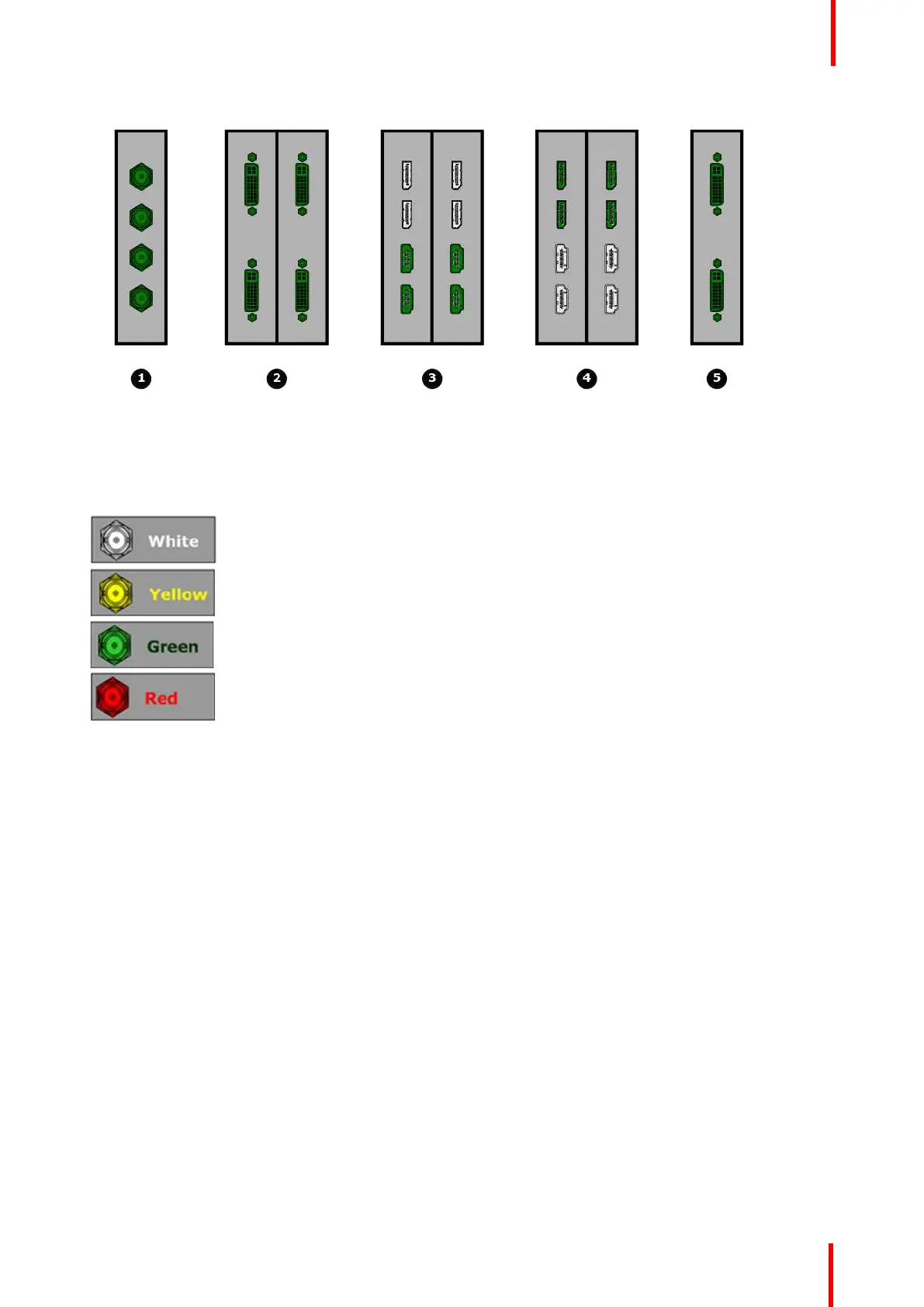

Image 6-16: Valid 4K inputs
1 4x SDI-3G
2 4x DVI-SL
3 4x HDMI 1.4
4 4x DP 1.1
5 2x DVI-DL
Input connector colors
Not assigned and no input signal is detected
Not assigned to any input, but a signal has been detected
Assigned to an input, and an input signal is detected
Assigned to an input, but an input signal is not detected
Input configuration menu description
Input configuration menu is accessed by clicking on the Input tab.
