Description

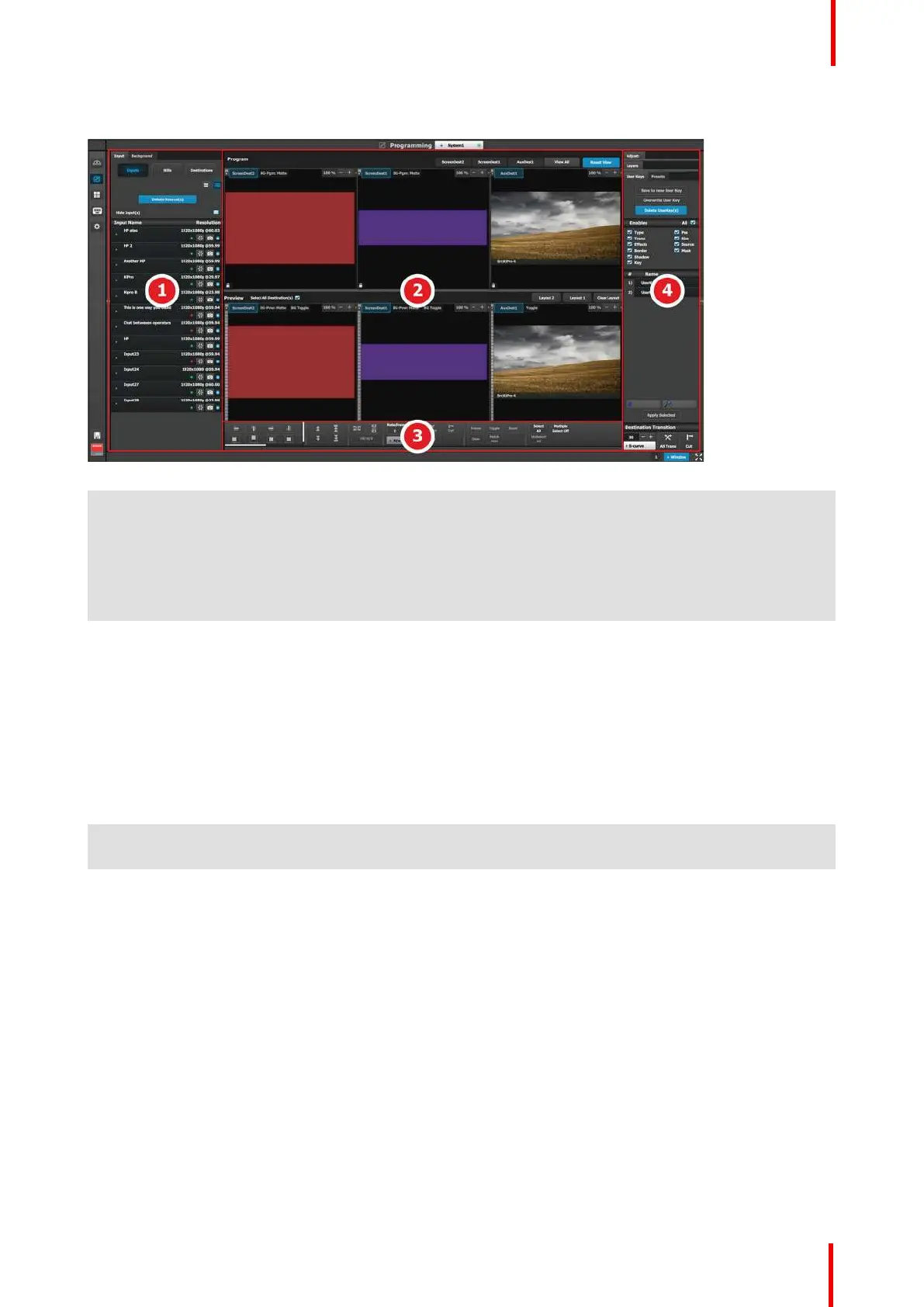

Image 6-63: Programming Menu Overview
1 Resources area This area contains the available resources for
programming and playback, as inputs and
sources. Still images, Screen Destinations
(automatically re-inserted into the system), and
Background sources (automatically re-inserted
into the system) are also available as resources
to be used in a PIP or Keying Layer.
2 Workspace / Programming Diagram area For each destination, super destination, or
destination group, the Program and Preview
screens can be viewed individually by selecting
the corresponding tab at the top of the
Programming Diagram area. Program and
Preview screens can be viewed individually or
simultaneously by selecting the individual
Destination tab or the “View All” tab.
The space between Program and Preview has
Layouts, a function where a certain group of
destinations can be laid out in the workspace
3 Workspace / Layer modification area Layer Alignment adjustments and controls to
manage the Preview/Program screens.
4 Adjustment area The menus in this area provide control of
parameters for selected layer and source. These
can be modified and managed. This is where
creation of User Keys and presets is done
The following sections describe each part of the Programming page in detail:
• “Programming Menu > Resources area”, page 198
• “Programming Menu > Diagram area”, page 210
• “Programming Menu > Layer Modifier area”, page 213
• “Programming Menu > Adjustment area”, page 217
