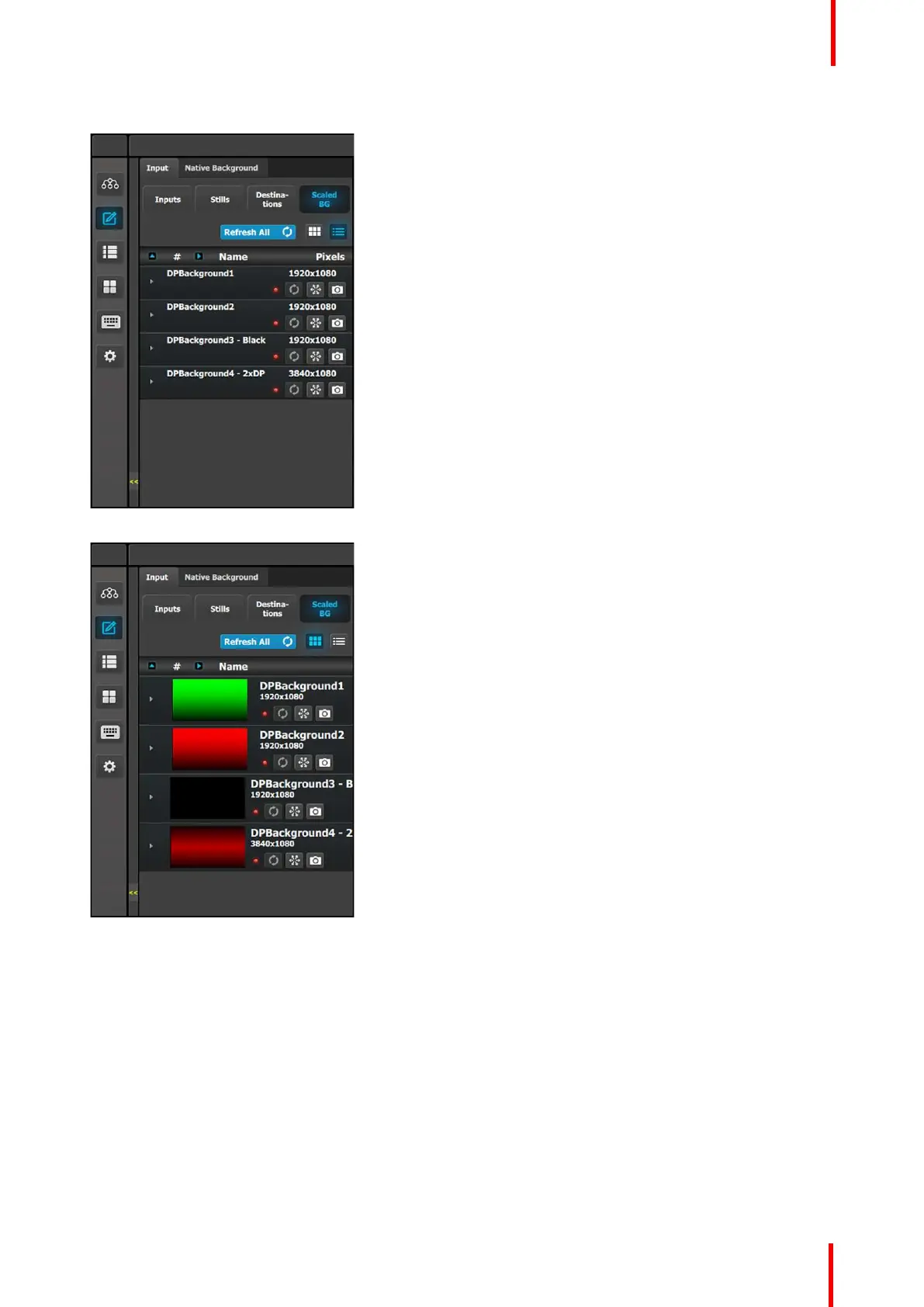

Input > Scaled BG (List view)
• Name: This is the Name of the Input as created in
the configuration of the system.
• Resolution: This is the resolution of the Input
signal.
• The LED color indicates the status of the input:
- Red: Sync is missing or invalid format.
- Green: Sync is valid.
• [Snowflake Icon] Freezes the input.
• [Camera icon] Allows for a snapshot to be taken
and stored as a Still.
Input > Scaled BG (Thumbnail view)
• Behavior is similar to the List view mode (see
above).
Backgrounds as Inputs
The Input > Scaled BG subtab allows the Event Master series processor to use Backgrounds as Inputs. This
subtab can be used on any E2 or S3 processor, but it is especially useful on a limited-resource processor,
such as an S3–4K Jr. processor. An Input defined as a Background can now be used as a Background, or as a
source on an AUX Destination or Screen Destination layer.
To use a Background as an Input, follow this procedure.
1. Go to the Programming menu.
2. Go to the Input tab of the Resources area, and then go to the Scaled BG subtab of the Input tab.
3. Drag a Background from the list on the Sacled BG subtab and drop it on any Screen or AUX Destination in
the Programming Diagram area that has at least one layer assigned to it.
If no layer is assigned to the Destination, you will have to go to the Native Background tab and drag and
drop the Background from the Background subtab.
