each copy can be different, but the size of the window for each copy is always the same." Multiviewer Menu
is the module used to setup the Multiviewer layouts.
Description
This menu is accessible by clicking the Multiviewer icon in the menu bar on the left side of the UI.
The three drop-down menus in the title bar select the system, unit or layout displayed in the multiviewer.
The Multiviewer page is divided in four parts.

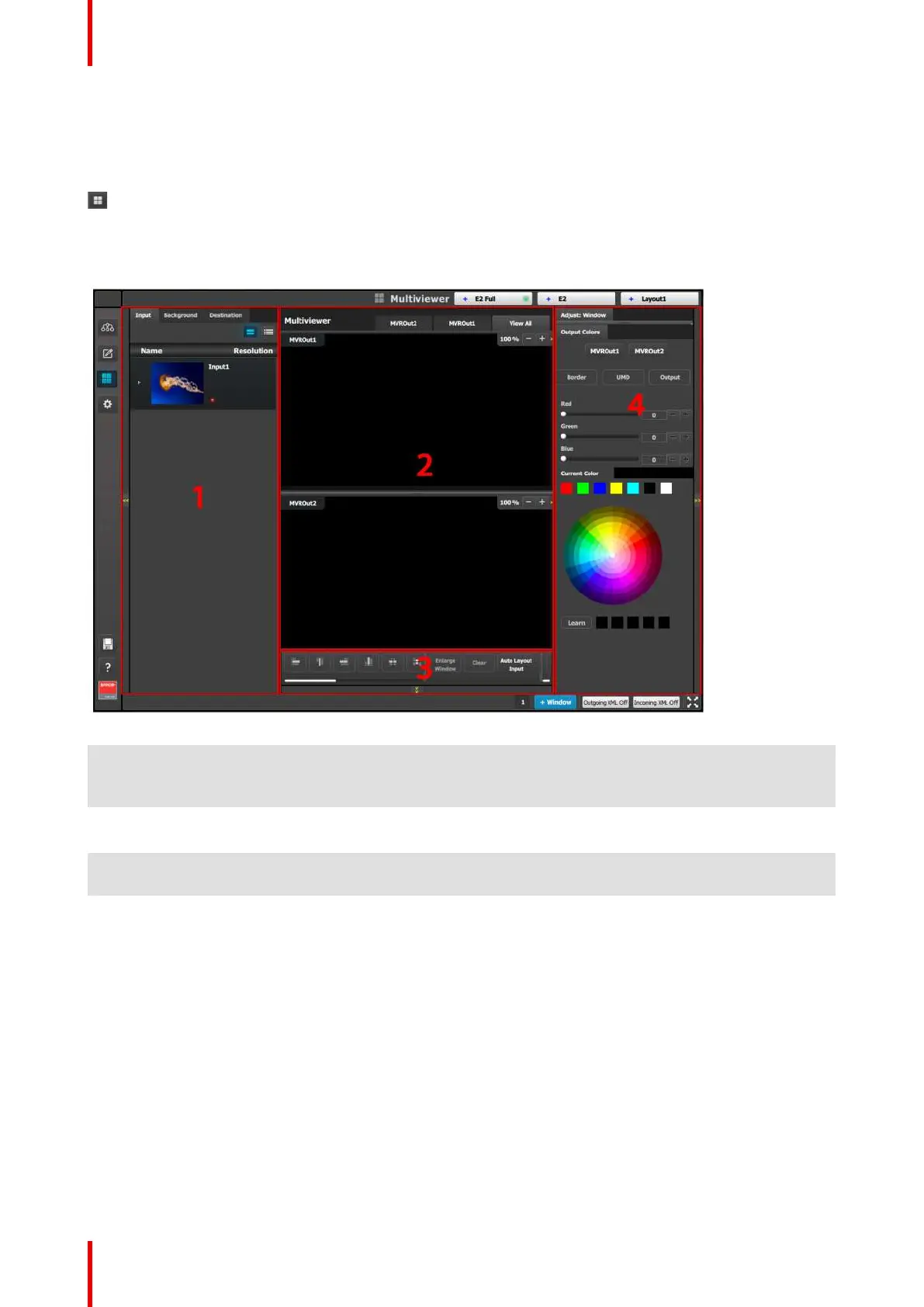

Image 6-105
1 Resources area Lists the resources available to be displayed in
the Multiviewer: Inputs, Backgrounds and
Program/Preview Destination Outputs.
2 Multiviewer Layout area The multiviewer outputs are composed, viewed
and managed individually or as a group.
3 Modifier area Alignment adjustments and controls to manage
the multiviewer windows.
4 Adjustment area Color and sizing adjustments for the windows in
each PIP, as well as the background color for
each MVR output.
The following sections describe each part of the Multiviewer page in detail:
• “Multiviewer Menu > Resource area”, page 247
• “Multiviewer Menu > Multiviewer Layout area”, page 248
• “Multiviewer Menu > Modifier area”, page 249
• “Multiviewer Menu > Adjustment area”, page 250
