Event
Master
Devices
406
14-40

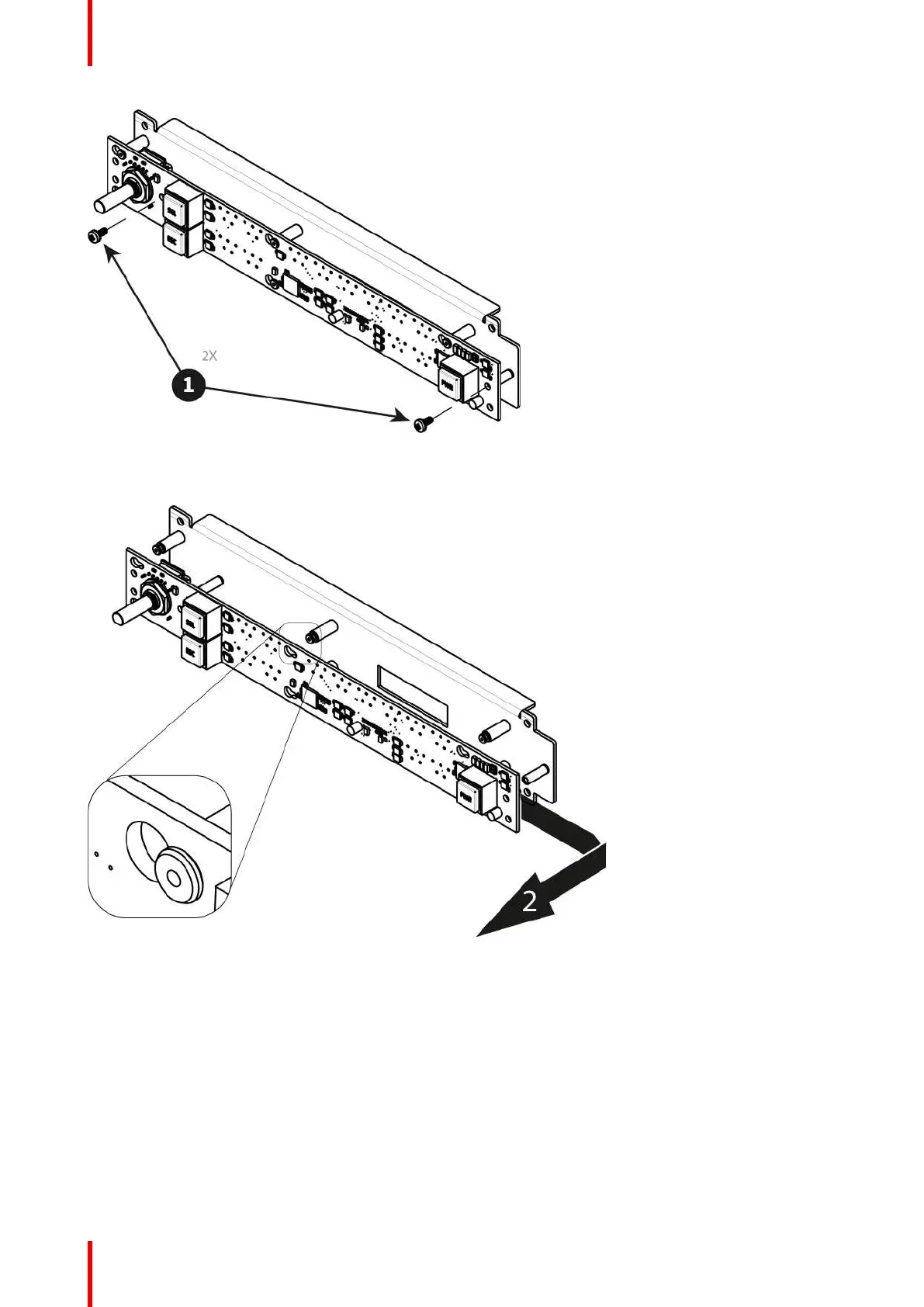

2.
Move
the
PCB
to
the
right
and
then
out
to
release
it
from
the
mount.
14-41
How
to
install
the
Front
Panel
Board
T
o
install
the
Front
Panel
Board
follow
the
same
procedure
in
the
reverse
order
.
E2
Maintenance
405
407
