Event
Master
Devices
414
14-56

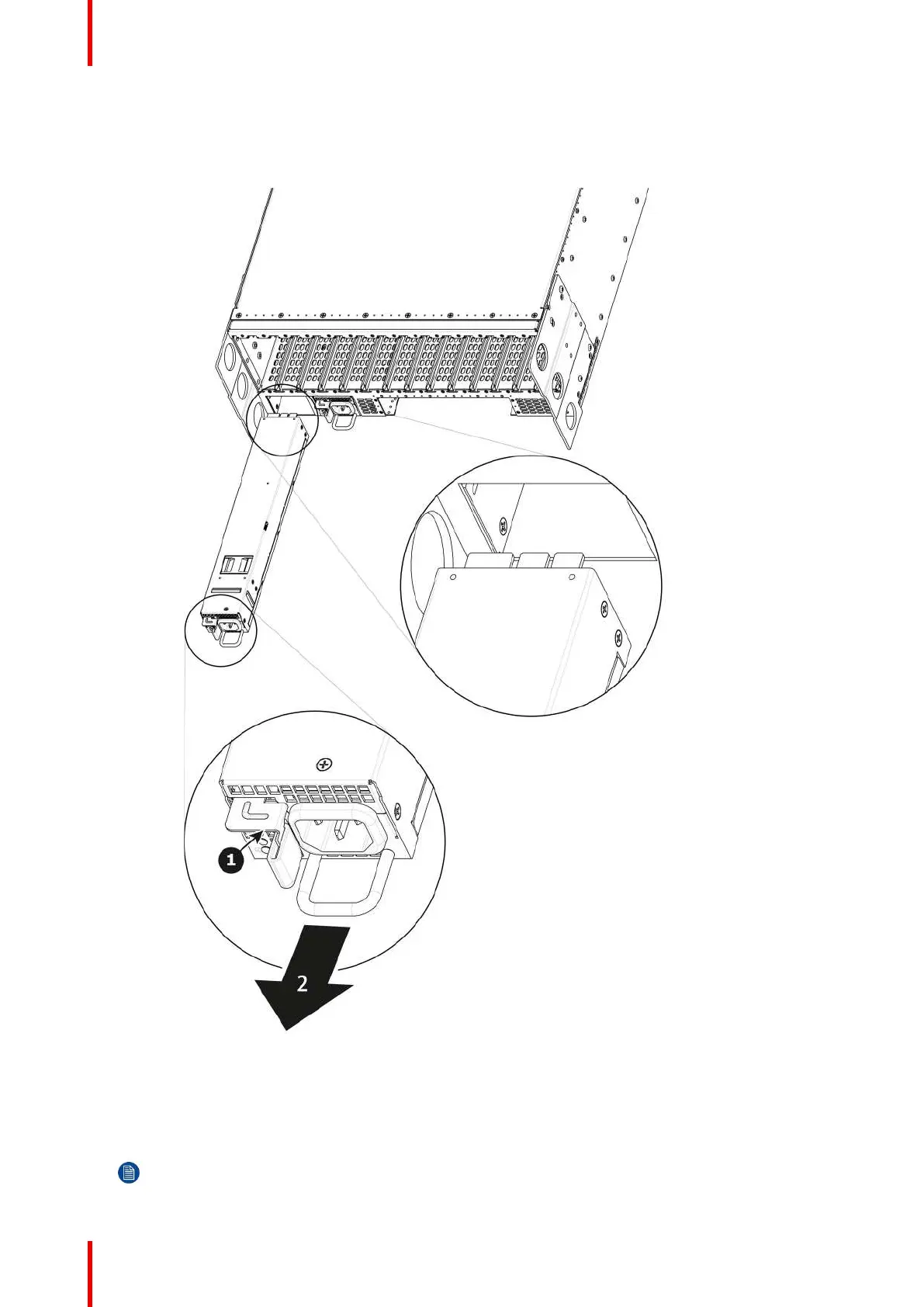

2.
Pull
the
Power
supply
out
of
its
slot
by
pulling
on
the
handle.
How
to
install
Power
Supply
1.
Insert
the
Power
Supply
into
the
slot.
Note:
The
card
edge
should
be
at
the
top
of
the
power
supply
as
shown
in
the
drawing.
E2
Maintenance
413
415
