R5905948 /12 Event Master Devices416
Overview

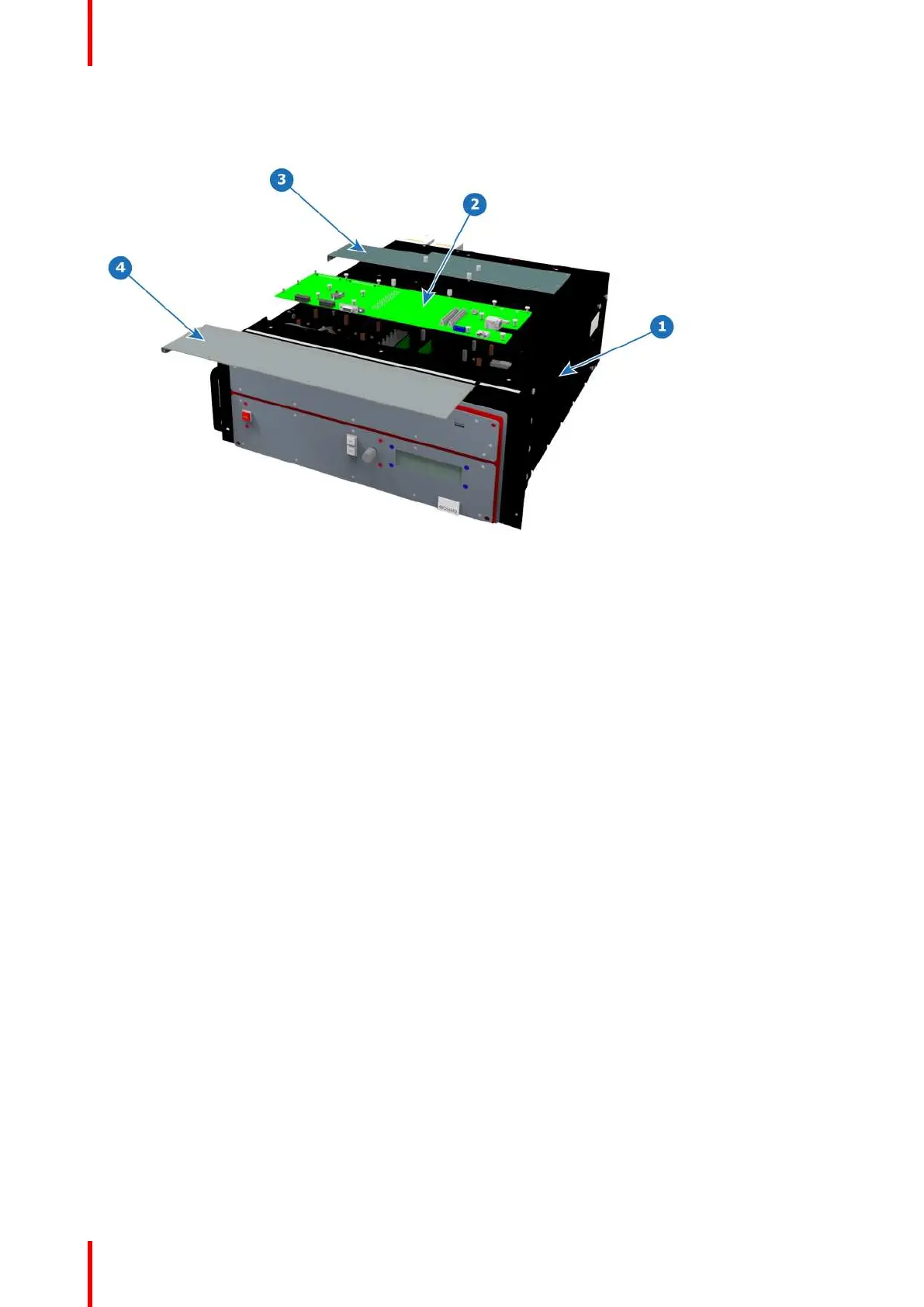

Image 14-58
1 Chassis
2 System-Power Board
3 Bottom Panel part 1
4 Bottom Panel part 2
Concerned parts
R767261K System-Power Board
Necessary tools
• 1 x Phillips Screwdriver #2
• Hex Screwdriver
How to remove the System-Power board
1. Unplug the USB, VFD, 3RU and 1RU cables that are plugged on the top side of the board and are visible
when the bottom panel is removed. Refer to the drawing below (top side) to locate the cables.
2. With the Hex Screwdriver, remove the 5 standoffs (m 2,5 H6 Stainless Steel) which attach the CPU module to
the motherboard.
E2 Maintenance
