R5905948 /12 Event Master Devices426
Concerned parts
R767269K Cable Kit Set
Necessary tools
• 1 x Phillips Screwdriver #2
• Hex Screwdriver
How to remove the VFD Cable
1. Partially remove the front panel assembly and pull it away to expose the cables behind it (refer to the related
procedure).
2. Push out the side latches on VFD connector to release the VFD cable.

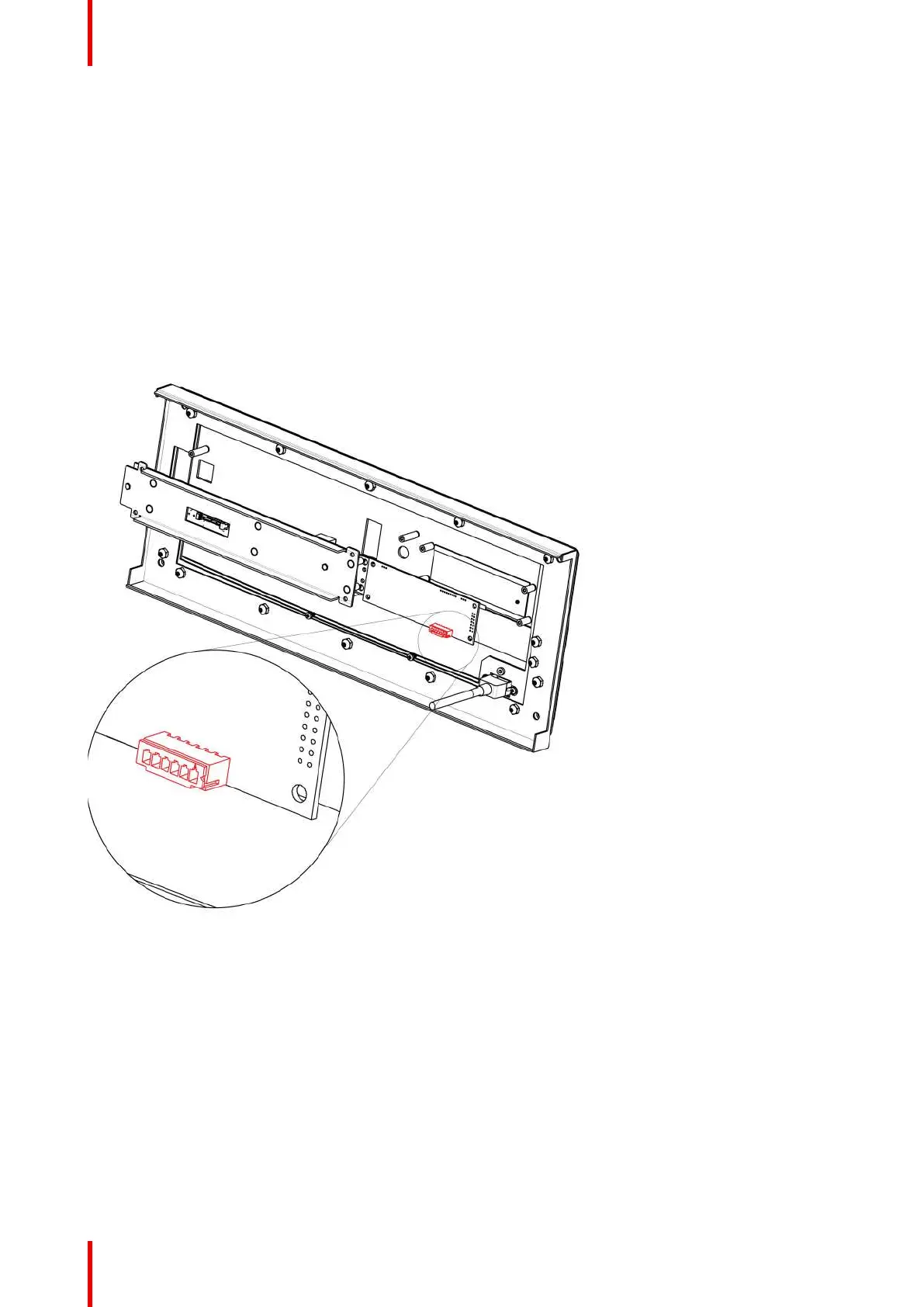

Image 14-73
3. Gently push the cable through the grommet located in the 1RU tray.
