R5905948
/12
Event
Master
Devices
429
14-77
8.

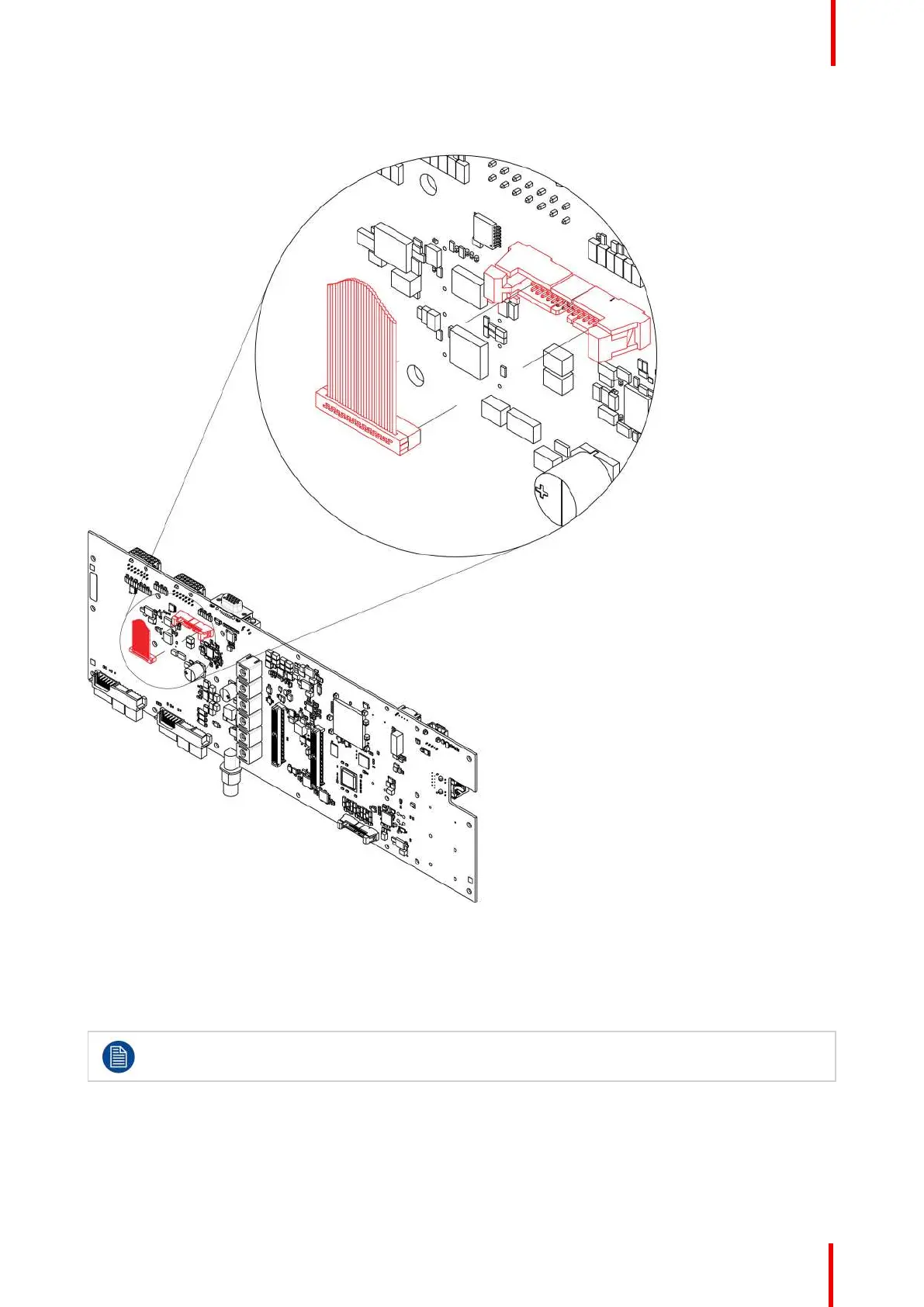

Carefully
remove
the
cable
from
the
unit.
How
to
install
the
Keyboard
Cable
T
o
install
the
Keyboard
Cable
follow
the
same
procedure
in
the
reverse
order
.
There
is
a
key
on
the
connector
to
prevent
incorrect
insertion
of
the
cable.
E2
Maintenance
428
430
