Overview

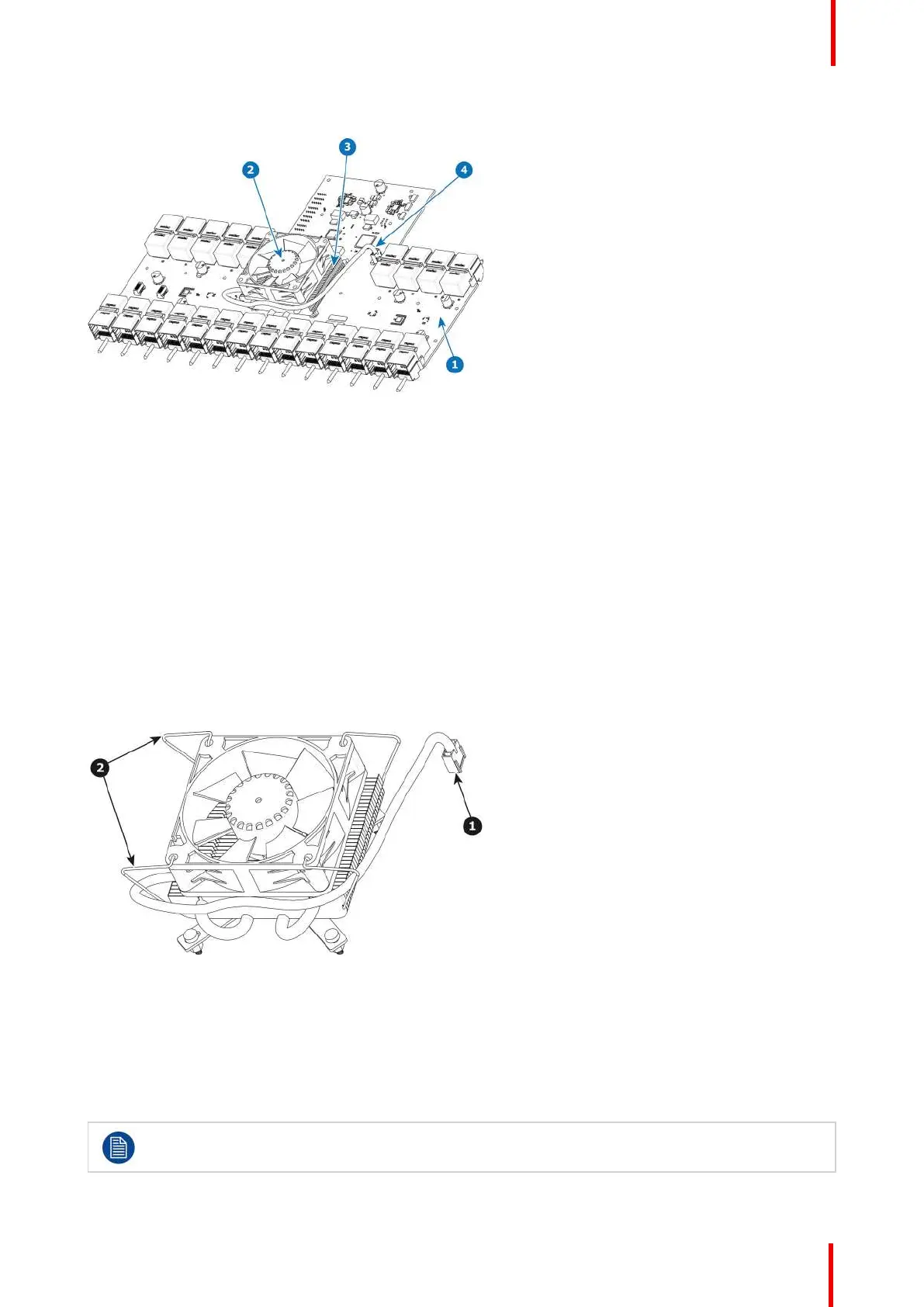

Image 14-102
1 Motherboard
2 Fan
3 Heatsink
4 Fan power cable
Concerned parts
R767265K Motherboard Heatsink &
Fan kit
Necessary tools
1 x Phillips Screwdriver #2
How to remove Motherboard Fan
1. Remove the cable that provides power to the heatsink fan.
2. Lift the two handles to release the fan from the heatsink.
Image 14-103
3. Lift the fan away from the heatsink.
How to install Motherboard Fan
1. Remove the fan from the Heatsink/Fan spare kit.
2. Using the clips install the fan on the top of the heatsink that is on the motherboard.
3. Connect the fan power cable to header xxx located on the motherboard.
Disregard the heatsink from the spare kit.
