R5905948 /12 Event Master Devices 457

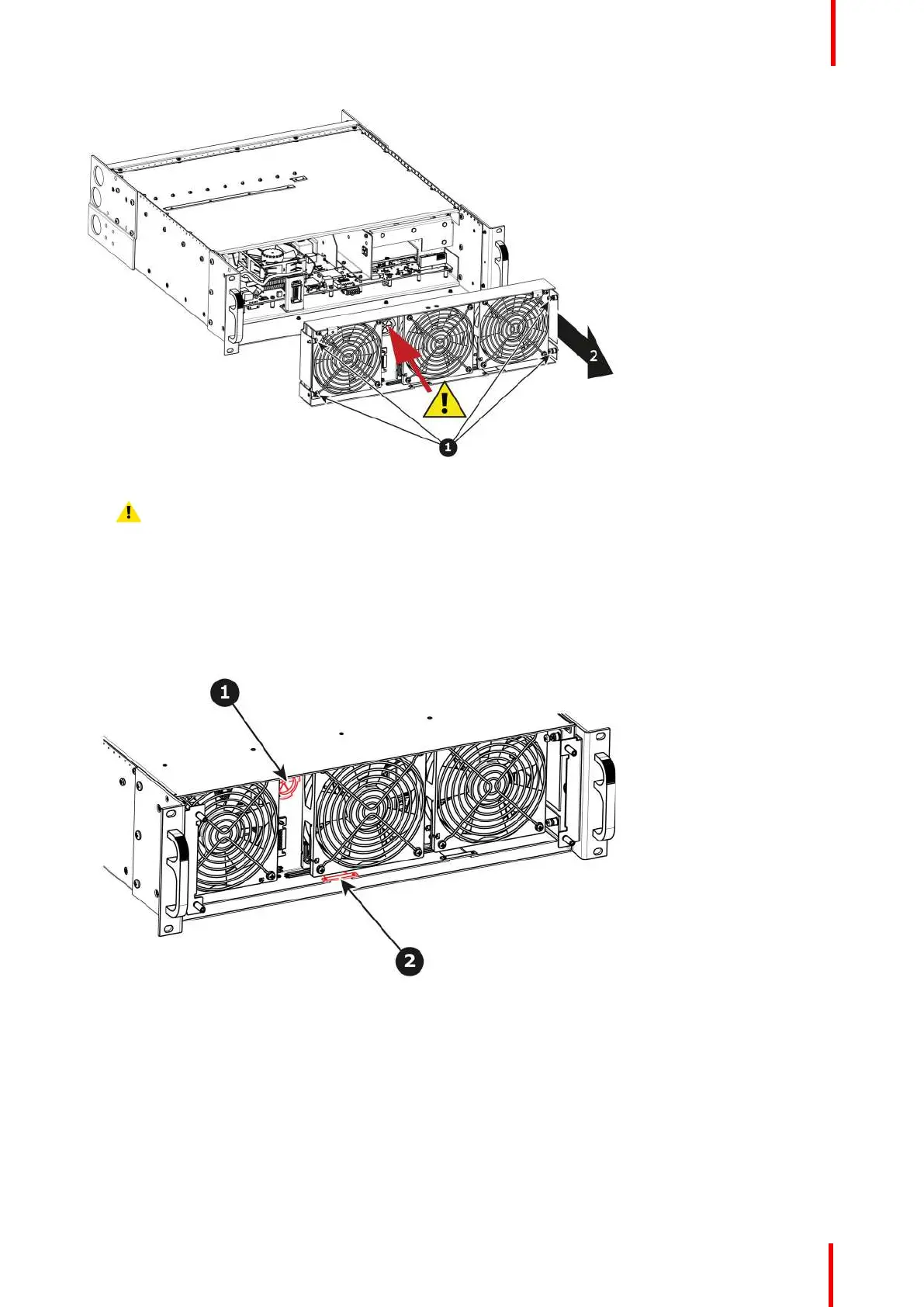

Image 15-16
Caution: Before you completely remove it from the unit carefully push the USB and Front panel cables
through the grommet located between the two fans at left hand side.
How to install the 3RU Fan Tray
Follow the same procedure in the reverse order and in addition perform the following:
1. Pass the USB and VFD cable through the grommet.
2. Make sure that the front panel flat cable (keyboard cable) goes through the slot located on the bottom side.
Image 15-17
3. Line up the connector behind the fan tray and the connector on the motherboard behind it and push so the two
connectors mate.
S3 Maintenance
