R5905948 /12 Event Master Devices 491
Overview

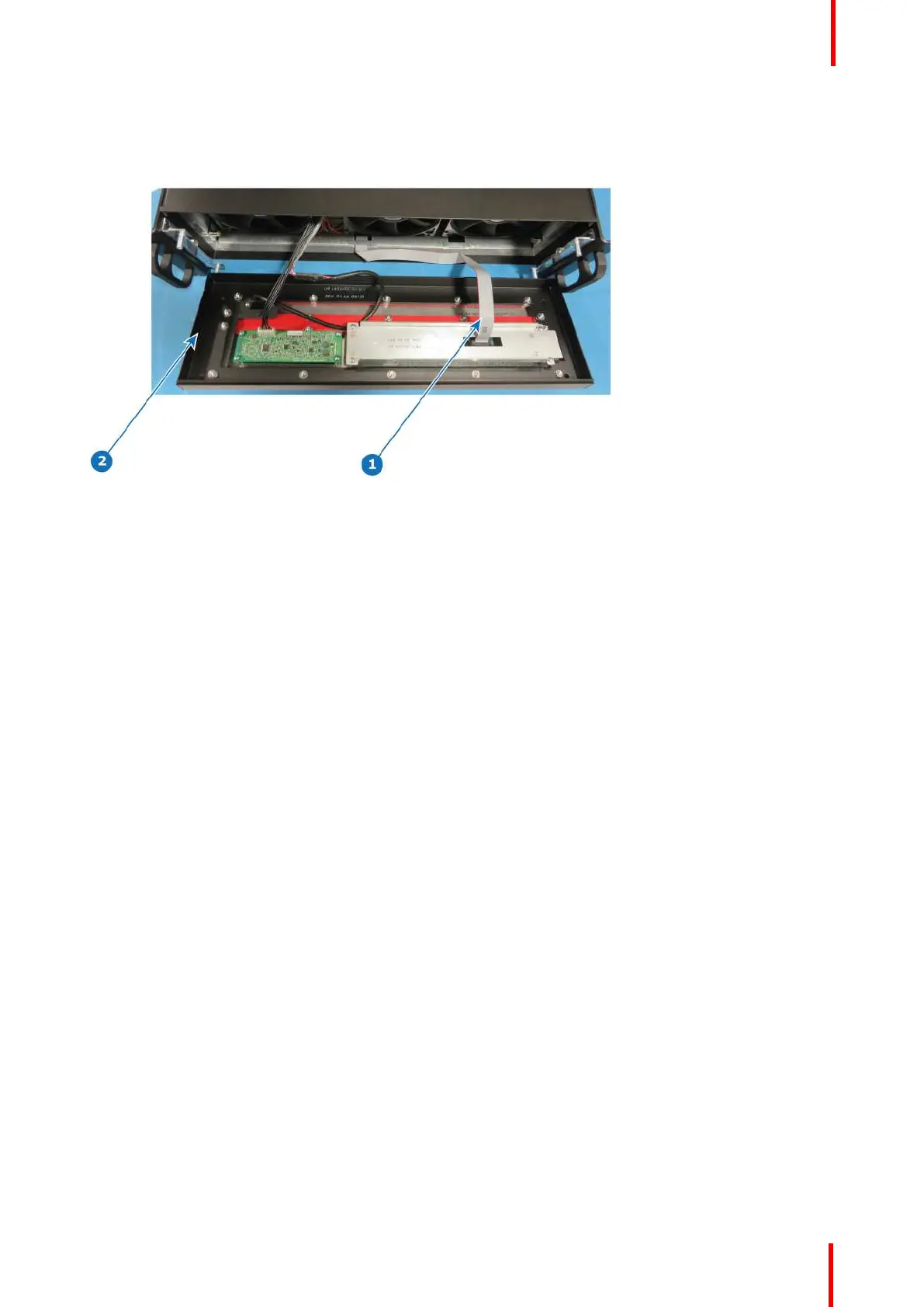

Image 15-83
1 Keyboard cable
2 Front face
Concerned parts
R767283K S3 Cable Kit Set
Necessary tools
• 1 x Phillips Screwdriver #2
• Hex Screwdriver
How to remove the Keyboard cable
1. In order to access the motherboard, follow the steps detailed in the other procedures to remove the Front
Cover Assembly, Front brackets and 3RU Fan Tray. Make sure that the Keyboard Cable is disconnected from
the Front Panel board.
2. Locate the keyboard connector and push the latches out to release the cable.
