2. Measure the distance between the front and rear rack rails. Remove the four mounting screws that secure
each side rail to the E2, and then adjust the spacing of each side rail as necessary.

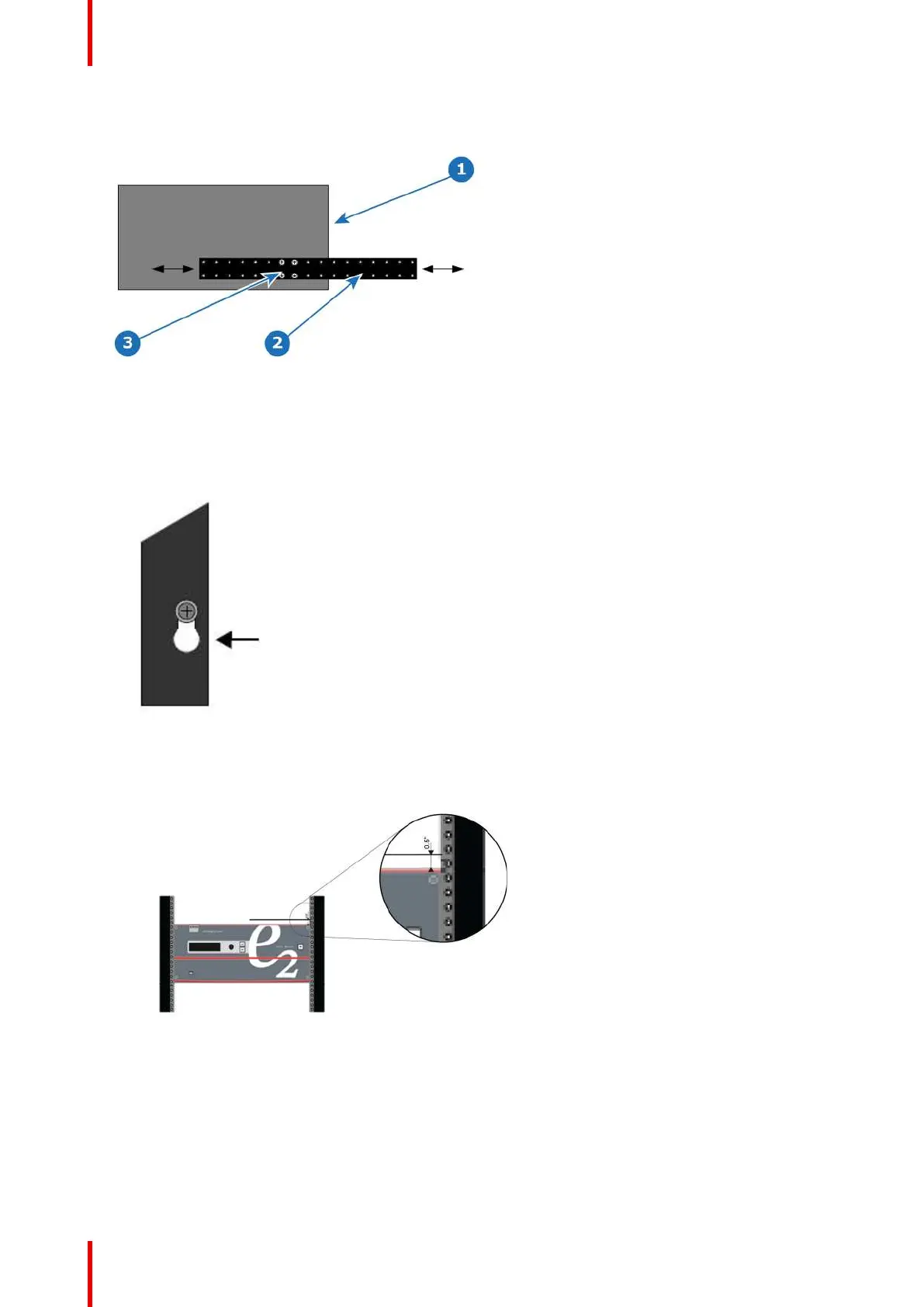

Image 3-13
1
Chassis rear
2
Side rail
3
Mounting screws
3. Re-install the mounting screws. When properly adjusted, the end of each side rail will protrude through the
slot in the rear mounting bracket, once the chassis is rack mounted.
Image 3-14
To take advantage of this feature, ensure that there is at least 1/2” of clearance above the chassis.
Image 3-15
2. For the E2’s two keyhole slots, measure and install two rack screws in your equipment rack’s front rails. Allow
each screw to protrude approximately 3/4” from the surface of the rails.
3. Lift the chassis, and while supporting it, slide the side rails through the slots in the rear mounting brackets.
4. While continuing to support the chassis, slide the screws (in the front rails) through the two keyholes, and let
the chassis settle up into the keyhole slots.
