R5905948 /12 Event Master Devices524

Image 18-4

It is strongly recommended to quickly buy a new fuse when the spare fuse is used.

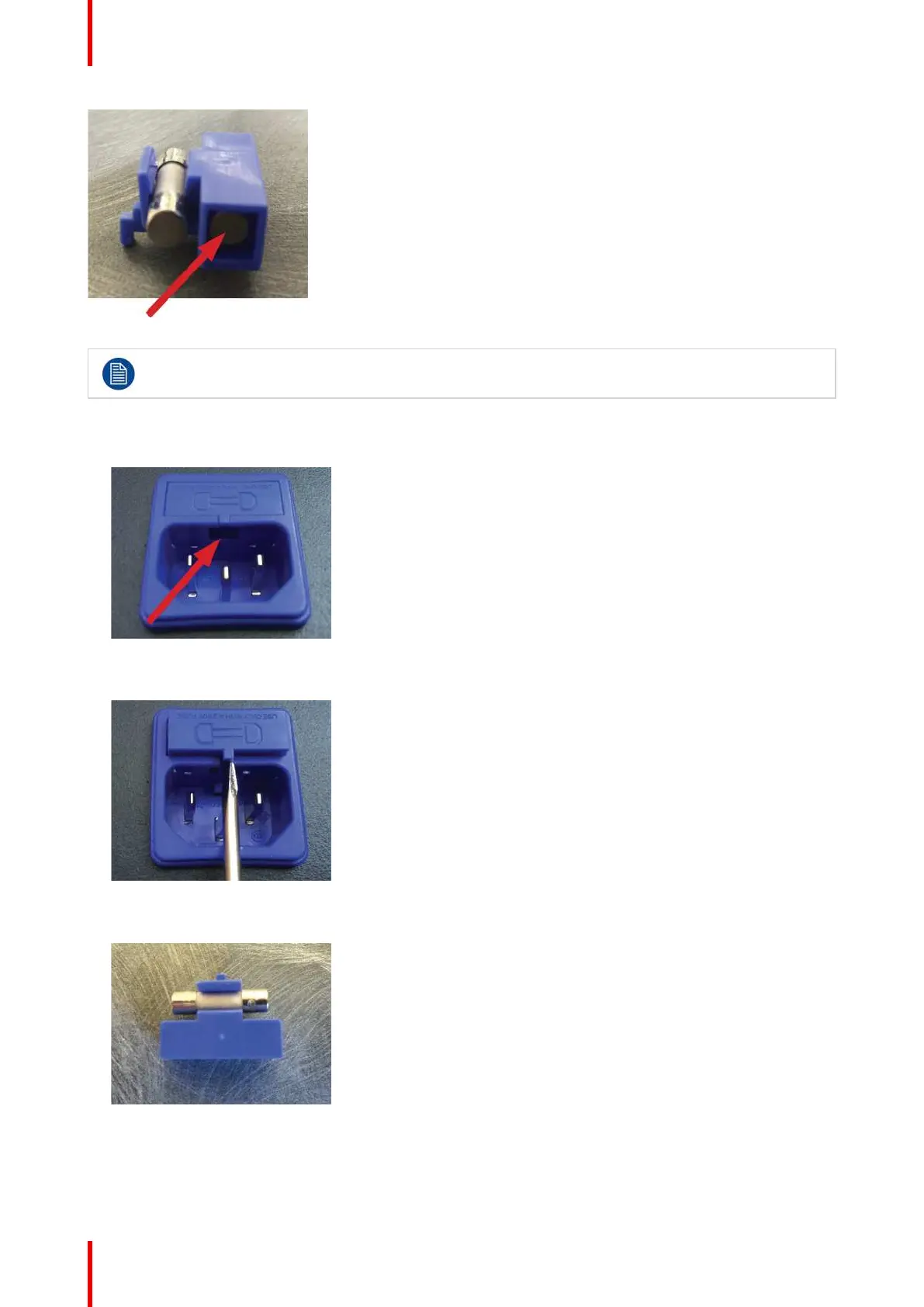

How to change power supply fuse:

1. Note the open slot under the fuse compartment.

Image 18-5

2. Use a small flat blade screwdriver to open the fuse compartment.

Image 18-6

3. Change the fuse. Fuse should be installed in the fuse holder as shown:

Image 18-7

4. Replace the fuse compartment in its location.

EC-50 Maintenance

Default Chapter5
