Barco Event Master E2 Series User Manual

R5905948 /12 Event Master Devices 71

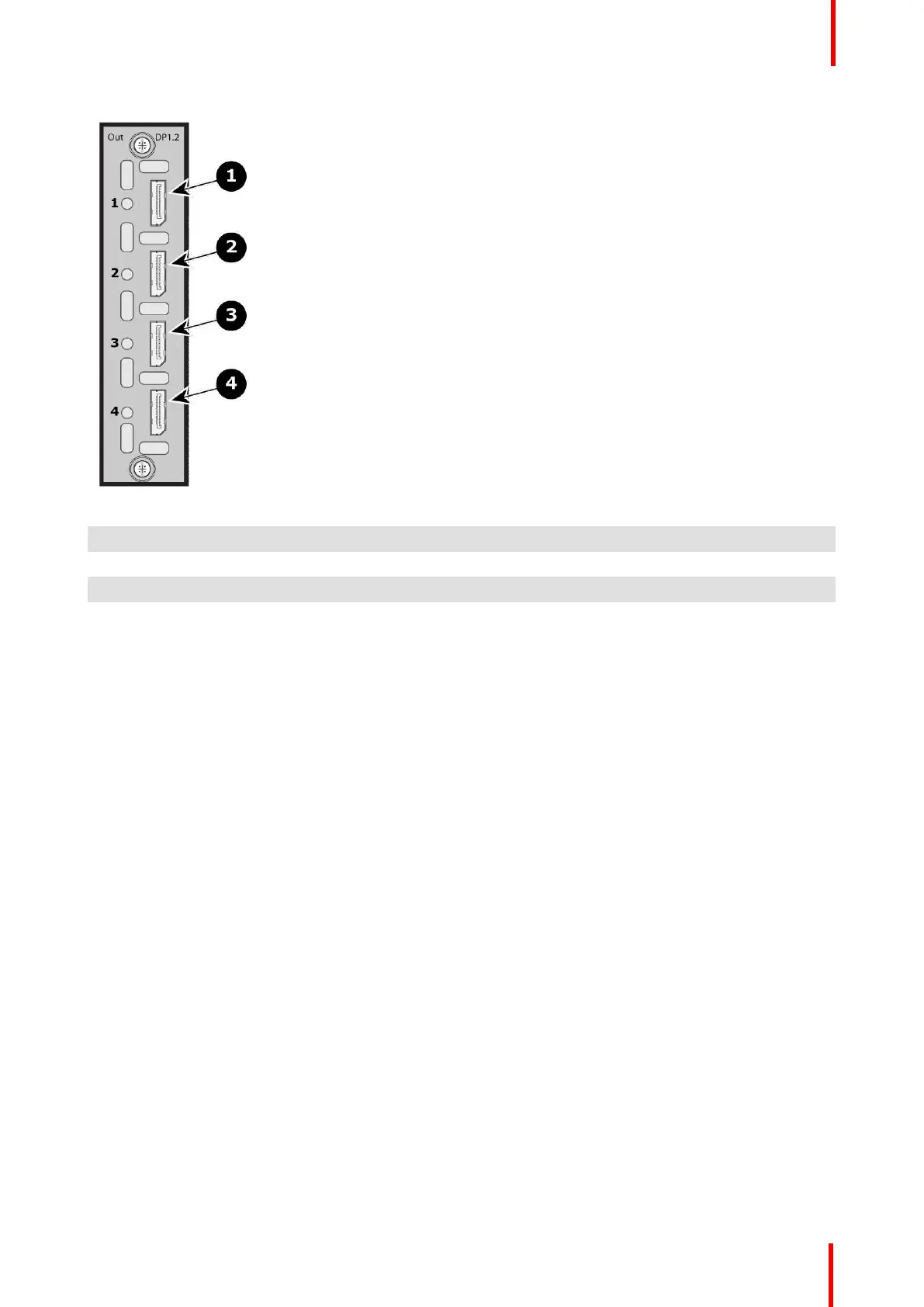

Image 4-14: Quad Channel DisplayPort 1.2 Output Card Rear Panel
1 DP connector — DP 1
2 DP connector — DP 2
3 DP connector — DP 3
4 DP connector — DP 4
Features
• Four channels of DisplayPort video output, each on a full-size DisplayPort external connector
• Provides up to four (4) independent signals
Specifications
• DisplayPort per 1.2 specification
• Pixel clock up to 620 MHz
- Max pixel clock at 24 bits/pixel = 620 Mpix/sec
- Max pixel clock at 30 bits/pixel = 576 Mpix/sec
- Max pixel clock at 36 bits/pixel = 480 Mpix/sec
• Supported formats:
- formats up to 4,096x2,160@60 (30 bits)
- 4K/UHD Supported:
◦ 3,840x2,160/ 23.98/24/25/29.97/30 via 1x DP, 2x DP (L and R half) or 4x DP (quadrants)
◦ 3,840x2,160/ 50/59.94/60 via 1x DP, 2x DP (L and R half) or 4x DP (quadrants, or columns)
◦ 4,096x2,160/ 23.98/24/25/29.97/30 via 1x DP, 2x DP (L and R half) or 4x DP (quadrants)
◦ 4,096x2,160/ 50/59.94/60 via 1x DP, 2x DP (L and R half) or 4x DP (quadrants or columns)
• Supply up to 500 mA @ 3.3V on pin 20
- Allows the DP connector to power an external device
• Multi-Stream Transport (MST)—not supported
• EDID version 1.4 compatible
• HDCP version 1.3 supported on connectors 1 and 2
Hardware orientation
