R5905948 /12 Event Master Devices92

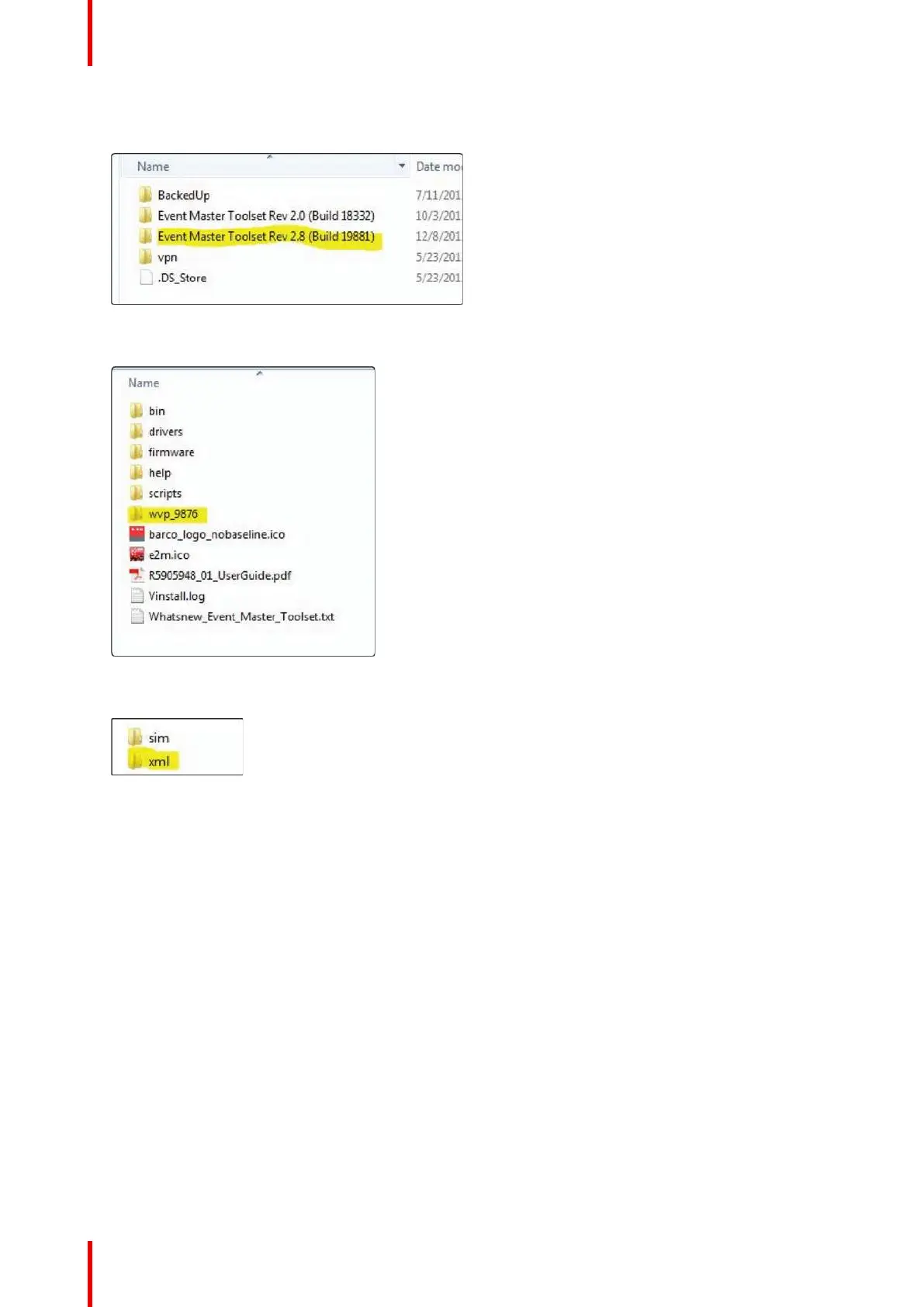

3. Locate in the Barco folder and select the Event Master Toolset folder that corresponds to the current
version you are using.
Image 5-14
4. Select the wvp_9876 subfolder.
Image 5-15
5. Open the xml folder.
Image 5-16
The xml folder contains subfolders for presets, stills, and userkeys, and it contains the configuration
settings file for your simulated system.
6. Create a folder on your desktop called EM, and create a subfolder inside it called Backup.
7. Copy and paste the xml folder from the wvp_9876 folder into the EM\Backup folder.
8. Open the xml folder in the EM\Backup folder.
9. Rename the settings.xml file to settings_backup.xml.
Make sure that you do not change the file extension.
10.Copy and paste the entire EM folder from your desktop to the root directory of a FAT32-formatted USB
drive.
3. Import the simulated configuration created offline to the live system:
1. Insert the USB drive into the USB port on the front of a live Event Master processor.
The live processor must be the same type as the simulated processor. If your simulated processor was an
E2, the live processor must be an E2; if your simulated processor was an S3–4K, your live processor must
be an S3–4K. The card setup on the simulated system must match the card setup on the live system,
otherwise Inputs might not match, or Destinations might be created on nonexistent Outputs. Those
Destinations will be grayed out, and you’ll have to recreate them.
2. Navigate on the front-panel display screen to the System menu, then to USB Backup/Restore, and then
to Restore XML, and then hit Select.
The system uploads the backup xml folder. When finished, the display screen reads “Restore successful.”
3. Select Yes (<SEL>), when the system asks “Reset unit now?”
Front Panel Menu orientation
