Datalogic Magellan 1500i User Manual

GLOBAL PREFIX/SUFFIX ENTER/EXIT PROGRAMMING MODE
PRODUCT REFERENCE GUIDE 109

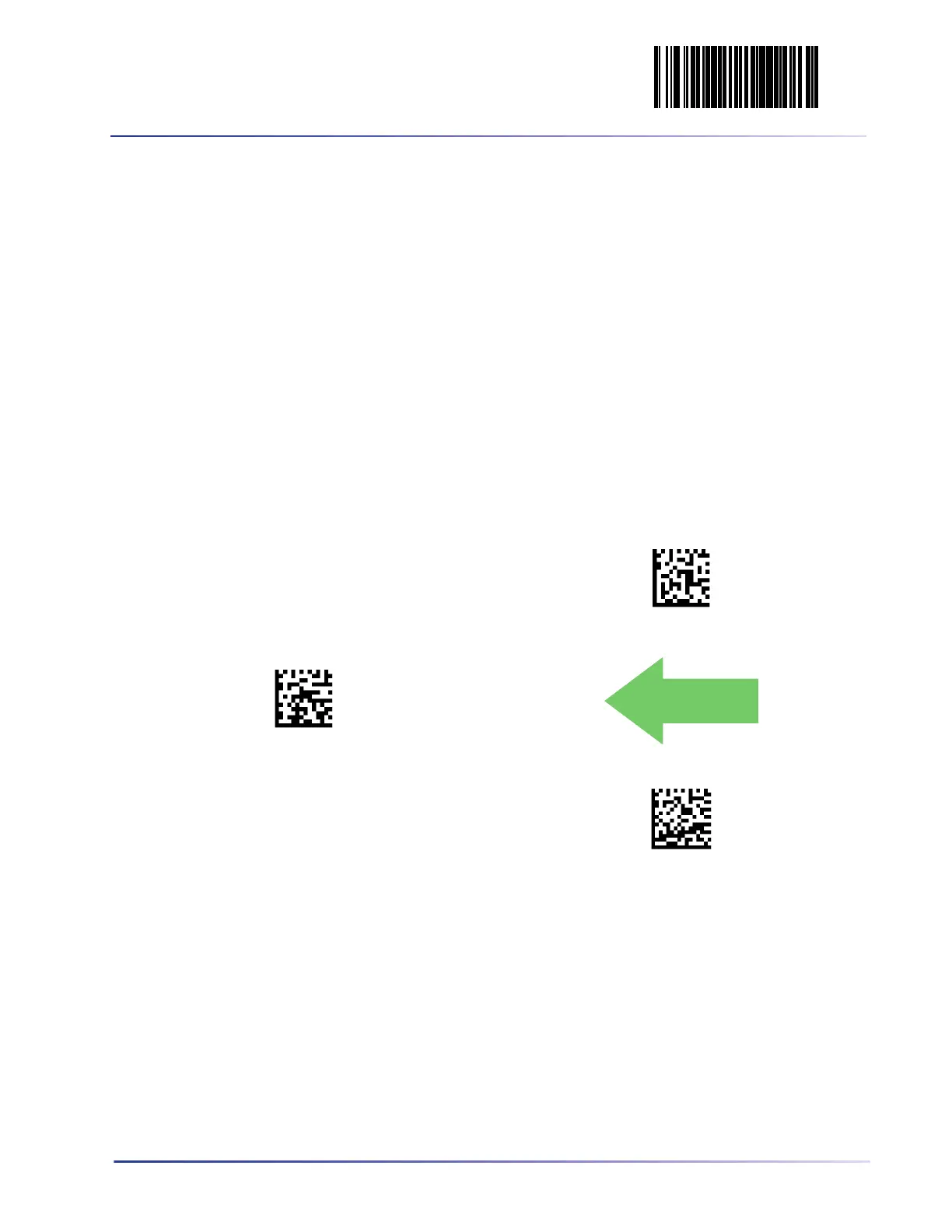

Global Suffix
This feature applies to RS‐232 (Standard or Wincor‐Nixdorf), USB‐COM, USB‐TEC, and USB
Keyboard interfaces. It specifies the suffix that is added to end of a label transmission.
Three standard options are available below. Contact your dealer for other alternate settings
for this feature.
•No Global Suffix
• CR — Carriage Return
• CR LF — Carriage Return, Line Feed
To set the Global Suffix:
1. Scan the Enter/Exit Programming Mode barcode at the top of the page.
2. Scan your selection from the barcodes below.
3. Complete the programming sequence by scanning the Enter/Exit Programming Mode
bar
code.
031E00(CR)
Global Suffix = No Global Suffix
031E0D00(CR)
Global Suffix = CR
031E0D0A00(CR)
Global Suffix = CR LF
DEFAULT

Datalogic Magellan 1500i Specifications

General

Type	Fixed bar code reader
Sensor type	LED
Scanner type	2D
Yaw reading angle	-75 - 75 °
Scanner resolution	0.13 mm
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86.1 lx
Linear (1D) barcodes supported	-
Optical sensor resolution (W x H)	1280 x 800 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	5 V
Power consumption	500 mA
Power source type	USB
Buzzer	Yes
Certification	EN62471, IEC62471
Product color	Black
Housing material	Plastic
Image formats supported	BMP, JPEG
International Protection (IP) code	IP52
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
USB version	2.0
Connectivity technology	Wired
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	75 mm
Width	60 mm
Height	150 mm
Weight	240 g
