Datalogic Magellan 1500i User Manual

ENTER/EXIT PROGRAMMING MODE
76 MAGELLAN™ 1500I

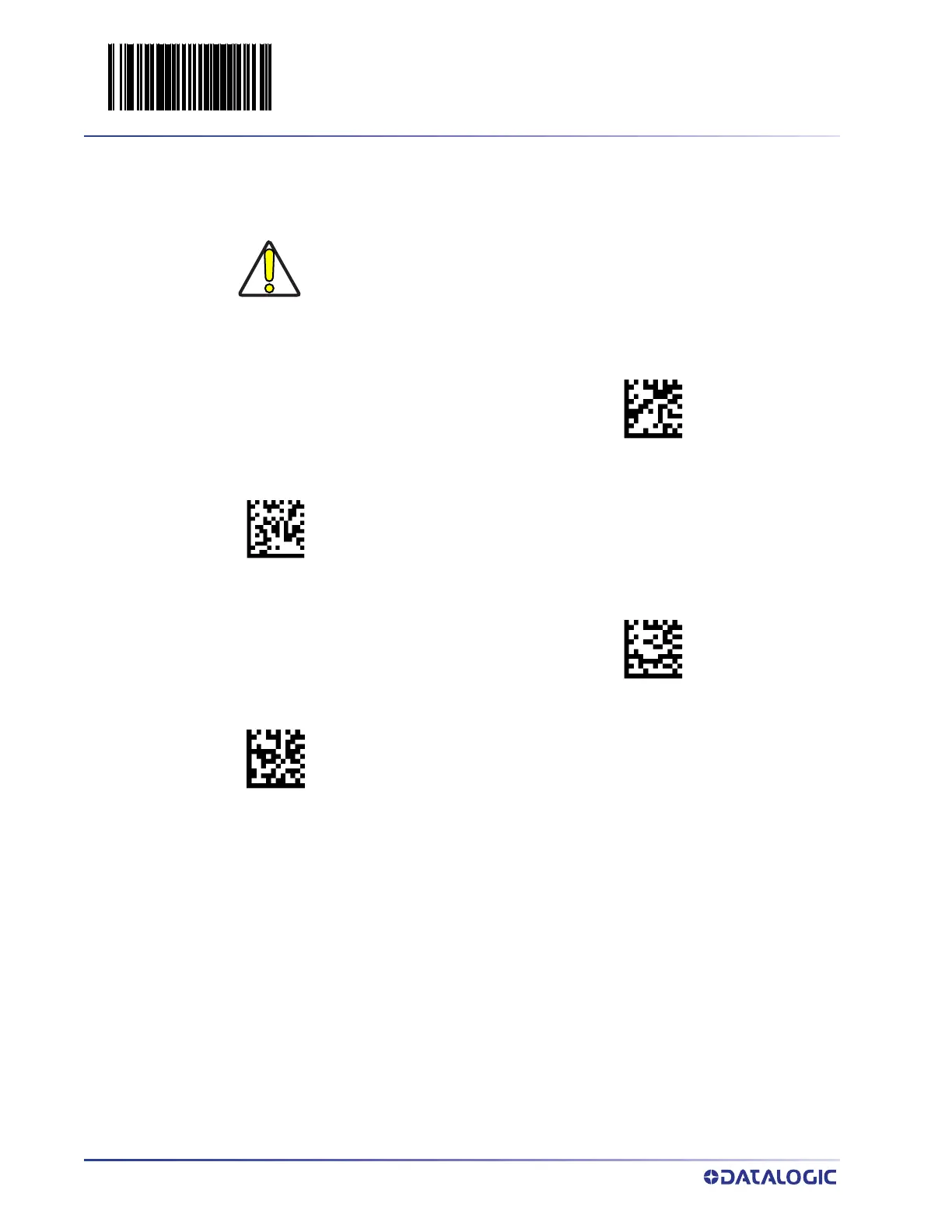

USB Interface Selection
Remember to cover any unused barcodes on this and the facing page to ensure that the
scanner reads only the barcode you intend to scan.
000145(CR)
Interface Type = USB OEM
00010D(CR)
Interface Type = USB TEC
000147(CR)
Interface Type = USB COM
000135(CR)
Interface Type = USB Keyboard
Great care should be taken to select the correct interface type, since you
can cause damage to the scanner and/or POS terminal by attempting to
change to an incompatible interface. ALWAYS make interface selections
with the host cable DISCONNECTED.
CAUTION

Datalogic Magellan 1500i Specifications

General

Type	Fixed bar code reader
Sensor type	LED
Scanner type	2D
Yaw reading angle	-75 - 75 °
Scanner resolution	0.13 mm
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86.1 lx
Linear (1D) barcodes supported	-
Optical sensor resolution (W x H)	1280 x 800 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	5 V
Power consumption	500 mA
Power source type	USB
Buzzer	Yes
Certification	EN62471, IEC62471
Product color	Black
Housing material	Plastic
Image formats supported	BMP, JPEG
International Protection (IP) code	IP52
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
USB version	2.0
Connectivity technology	Wired
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	75 mm
Width	60 mm
Height	150 mm
Weight	240 g
