5. Scan the END barcode once to finish the string, then scan END again to exit Program‐
ming Mode.
NOTE
If all 20 characters will be used in the prefix or suffix, do not scan the END
barcode to finish
the string. It is done automatically.
6. The resulting message string would appear as follows:
Scanned barcode data:12345
Resulting message string output: $12345
LABEL ID
A Label ID is used to identify a barcode (symbology) type. It can be appended previous to or
following the transmitted barcode data depending upon how this option is enabled. This
feature provides options for configuring custom Label IDs individually per symbology. If you
wish to program the scanner to always include an industry standard label identifier for ALL
symbology types, see the feature,
AIM ID on page 110.
The Label ID is a customizable code of up to three ASCII characters (each of which are hex
00‐7
F) followed by a control character (00‐01), This control character, when set to zero,
does nothing. When set to one, it appends the symbology’s AIM ID to the Label ID.
NOTE
When the control character is set to 01 for UPC-A and UPC-E, it expands
the label to EAN-13 and thus follows the EAN-13 Label ID settings.

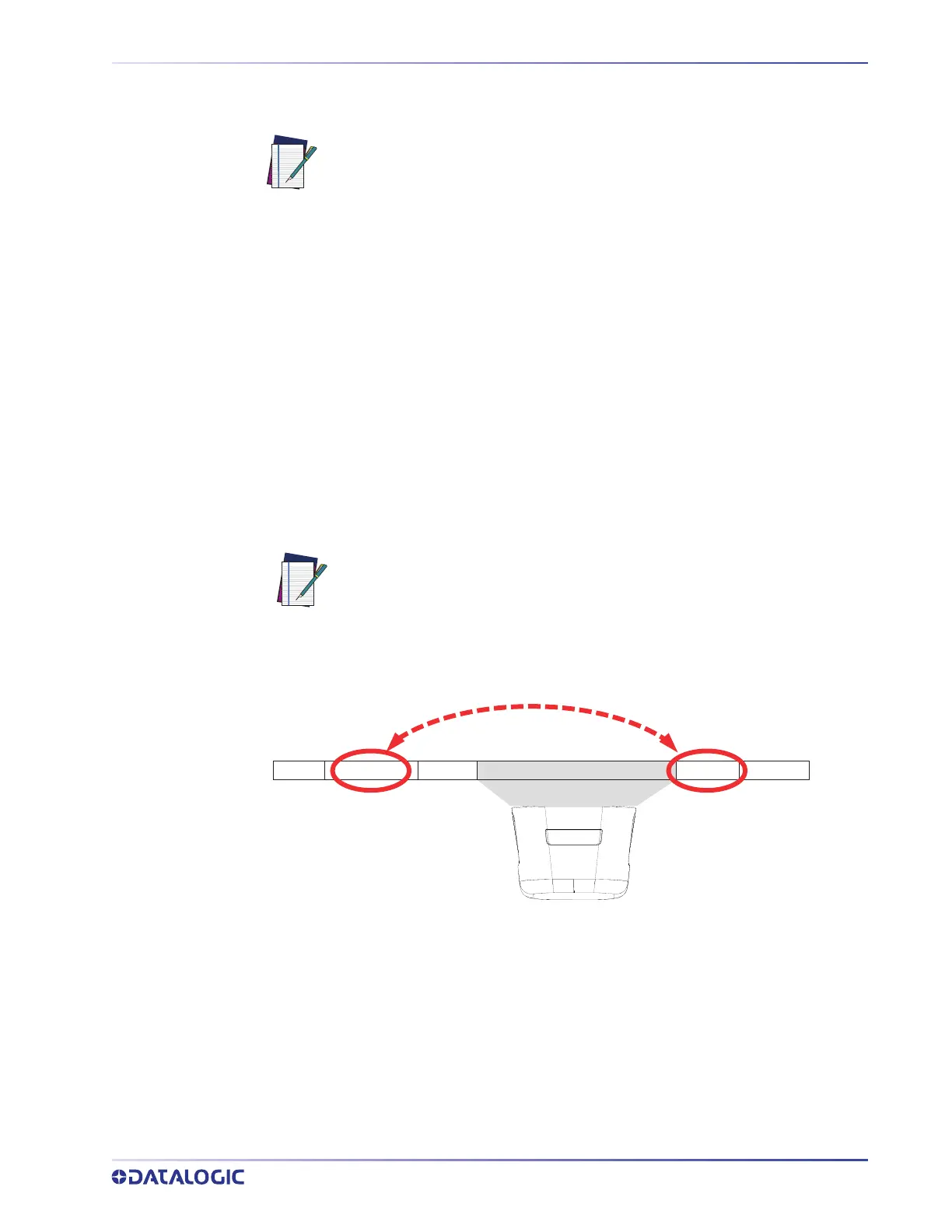

Figure 13. Label ID Position
OR
Prex SuxLabel ID Label IDBar Code DataAim ID
Options
See Label ID on page 111 for programming barcodes. See Appendix D, Factory Default Set-
tings, for a listing of common symbologies.
