Datalogic Magellan 1500i User Manual

ENTER/EXIT PROGRAMMING MODE
152 MAGELLAN™ 1500I

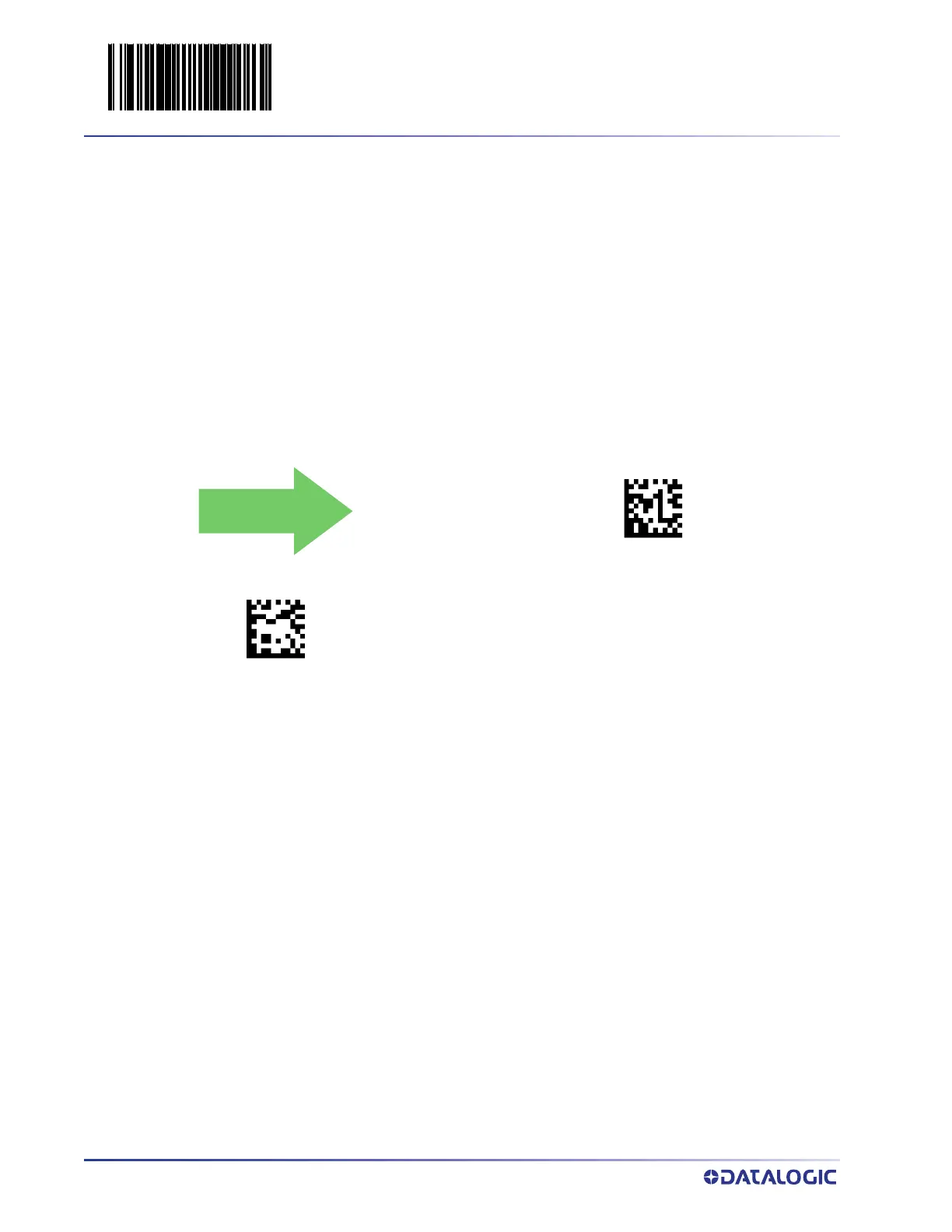

EAN-8 Stitch Exact Label Halves
This setting enables the stitching of exact EAN‐8 label halves with no overlapping charac‐
ters.
To set this feature:
1. Scan the Enter/Exit Programming Mode barcode at the top of the page.
2. Scan either the enable or disable barcode below. You’ll need to cover any unused bar‐
codes on this and the facing page to ensure that the scanner reads only the barcode
y
ou intend to scan.
3. Complete the programming sequence by scanning the Enter/Exit Programming Mode
bar
code.
054400(CR)
EAN-8 Stitch Exact Label Halves = Disable
054401(CR)
EAN-8 Stitch Exact Label Halves = Enable
DEFAULT

Datalogic Magellan 1500i Specifications

General

Type	Fixed bar code reader
Sensor type	LED
Scanner type	2D
Yaw reading angle	-75 - 75 °
Scanner resolution	0.13 mm
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 86.1 lx
Linear (1D) barcodes supported	-
Optical sensor resolution (W x H)	1280 x 800 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, QR Code
Input voltage	5 V
Power consumption	500 mA
Power source type	USB
Buzzer	Yes
Certification	EN62471, IEC62471
Product color	Black
Housing material	Plastic
Image formats supported	BMP, JPEG
International Protection (IP) code	IP52
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
USB version	2.0
Connectivity technology	Wired
Sustainability certificates	RoHS
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	75 mm
Width	60 mm
Height	150 mm
Weight	240 g
