Use and maintenance
Connection to motorcycle
The tester requires a power supply of between 9 and 16 Volts DC
When using the tester, take care never to allow the power supply to fall below the minimum voltage: this situation could occur
during engine starting and idling on motorcycles in which the battery is not in perfect working order. If the tester detects a power
supply voltage of less than 9 Volt, the current procedure will be aborted; when the voltage returns to within the acceptable
tolerance limits the procedure must initiated again from the beginning.
The DDS tester (1) may be powered from the motorcycle in any one of the following ways:

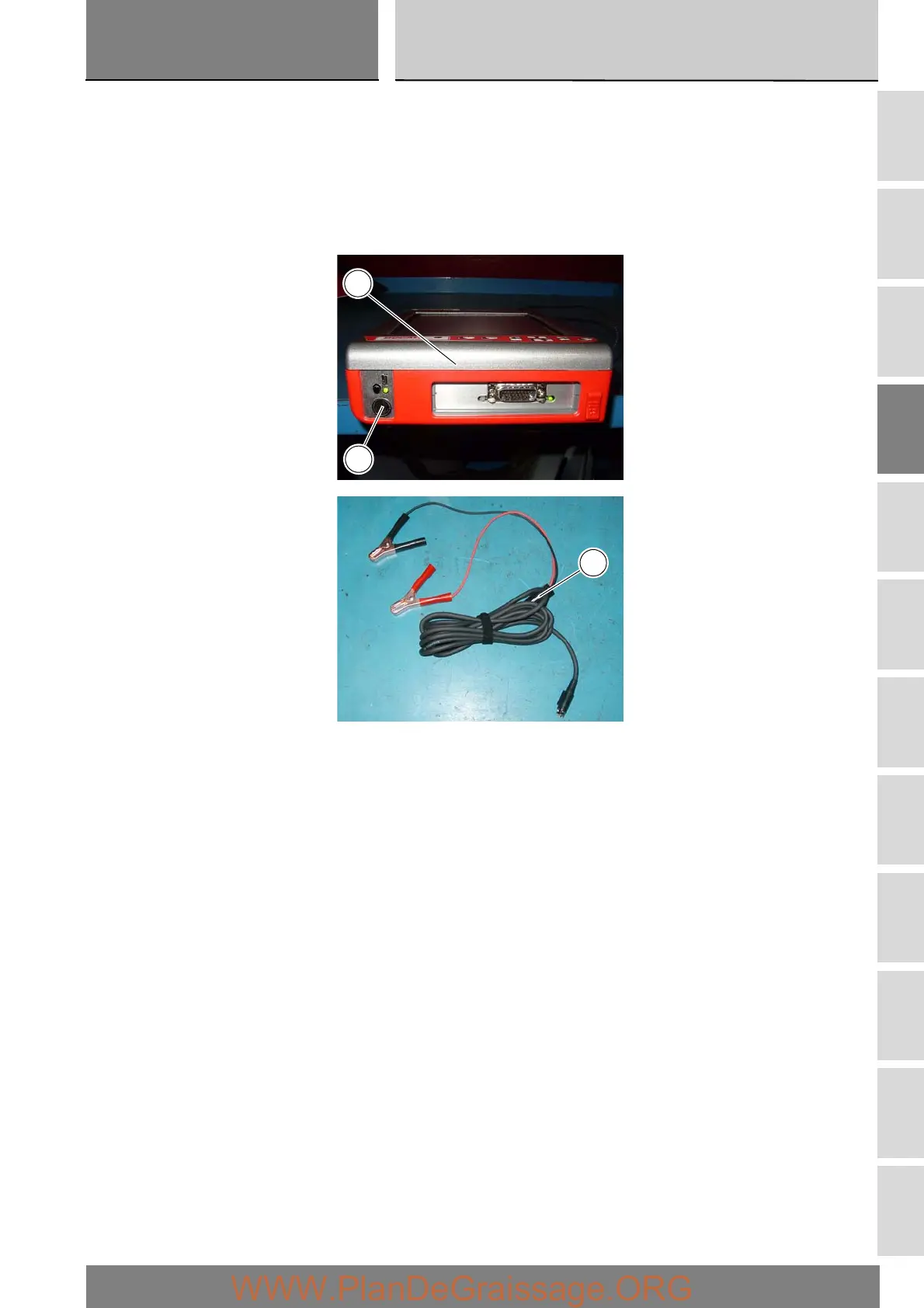

- connect the battery power adapter (13) to the power connection socket (N) on the tester and to the motorcycle battery;
N
1
13
