52 1098/1098S - M.Y. 2007 - edition 00
Use and maintenance

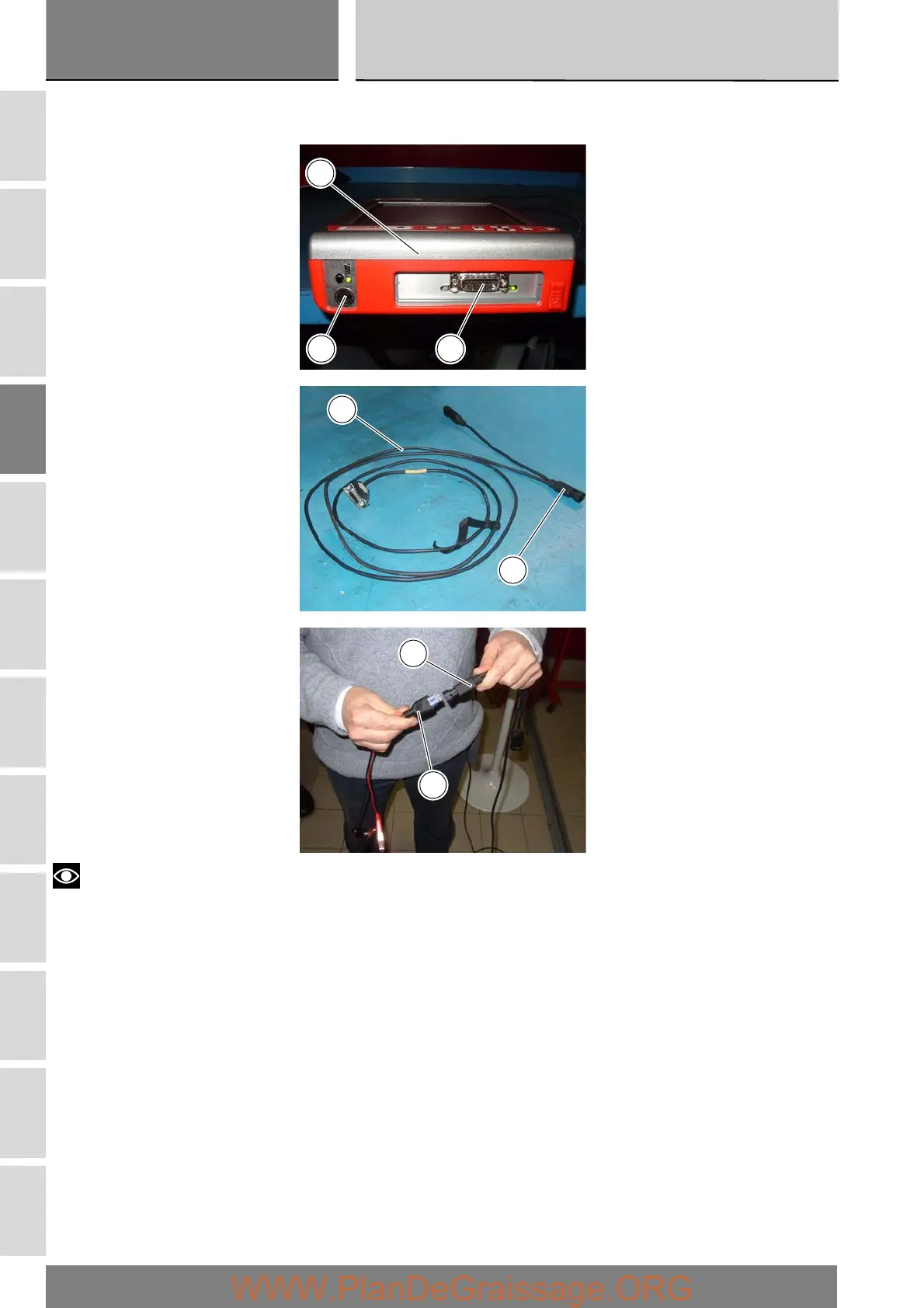

- connect the power and diagnostic cable (2) to the diagnostic connection socket (P) on the tester; then connect the battery
socket adapter (8) to the connection socket (R) on the power and diagnostics cable (2) and to the motorcycle battery.
Notes
For connection of the various devices required for self-diagnostic procedures, consult the instruction handbook supplied with the
tester.
