section
D 5
64 1098/1098S - M.Y. 2007 - edition 00
Use and maintenance

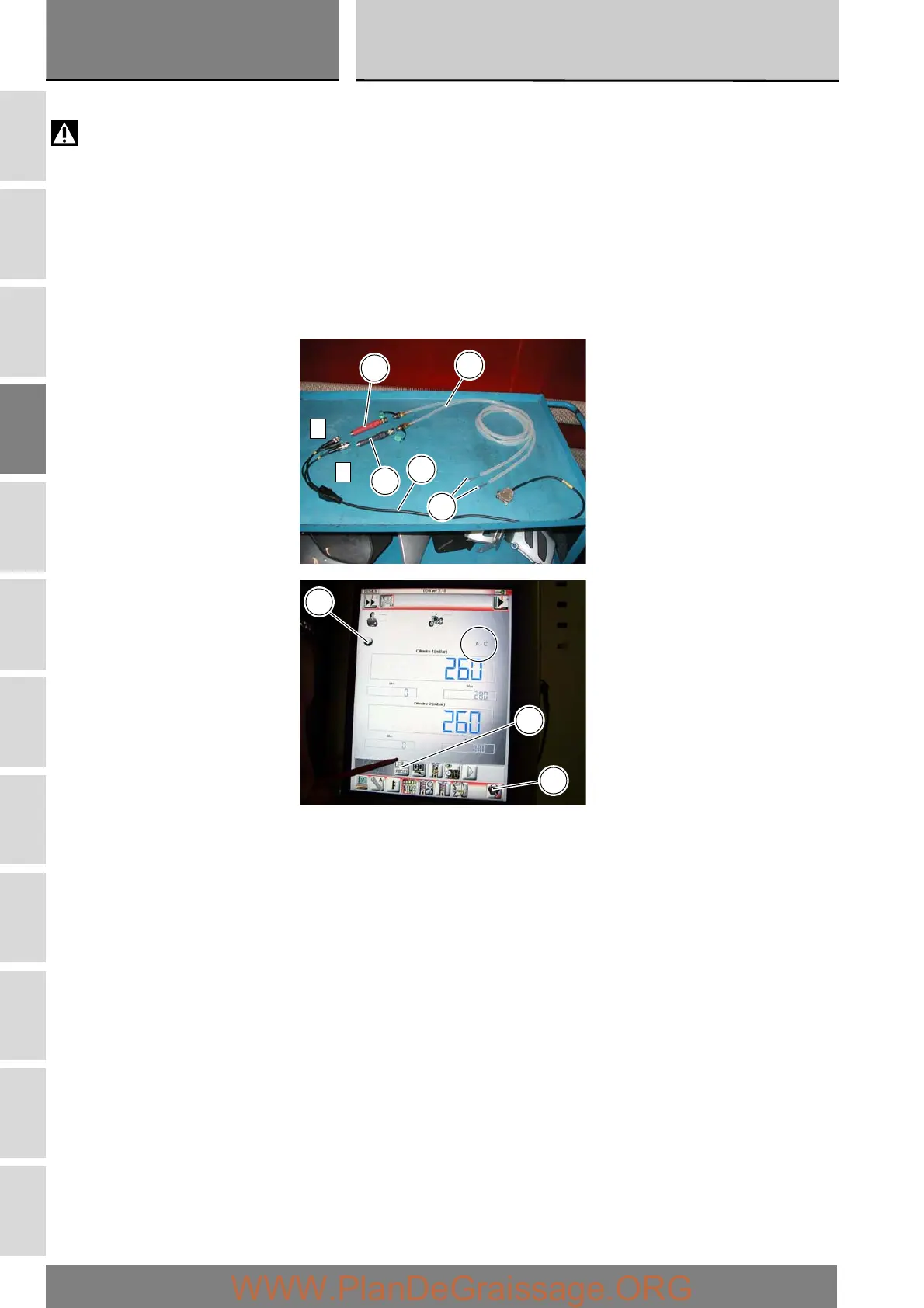

Close the bypass screws (20) completely.
Warning
Press the “Reset” icon (G), then connect the sensors (4) and (5) to connectors (A) and (C) of the cable (3) and to the vacuum/
pressure pipes (6).
Press the “Start” icon to begin the cylinder pressure measurement procedure.
The onscreen indicator light (E) will turn red when the function is active.
Start the engine.
The values may be displayed in two different ways: in numerical form or in graphic form; to select the desired display type, press
the “Value display” icon (F).
Correct balancing is obtained when the two lines of the graph are superimposed or when the two numerical values indicated are
equal.
5
C
A
6
4
3
7
E
F
G
