Fairings
Removal of the seat cowling
In order to remove the seat cowling, you first need to remove the seats and side panels as described previously.

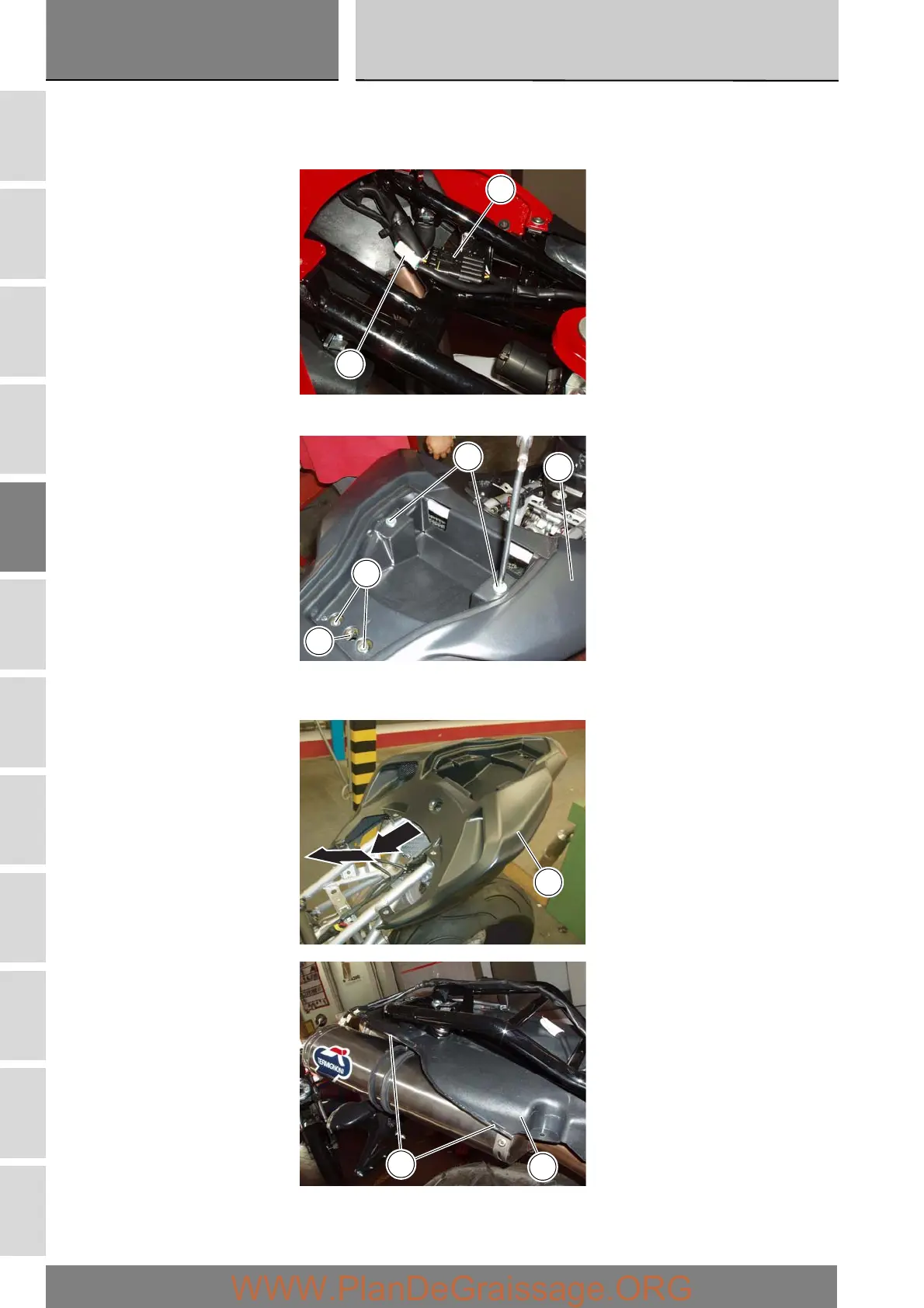

Disconnect the wiring connectors (A) of the rear wiring loom and the connector (B) of the data acquisition wiring.
Unscrew the two upper bolts (7) securing the seat cowling (6). Unscrew the two bolts (8) securing the catch for the lock (16).
Remove the seat cowling (6) from the heat shield (19), pushing the cowling towards the front of the bike while simultaneously
lifting it to disengage the catches (C) on the heat shield (19) from the corresponding locations on the seat cowling (6).
B
A
8
16
7
6
6
19
C
