section
E 3
211098/1098S - M.Y. 2007 - edition 00
Fairings
Removal of the seat cowling heat shield
Remove the exhaust silencers and the relative clamps as indicated in Sect. L 8.
In order to remove the seat cowling heat shield, you first need to remove the seats, side panels and seat cowling as described
previously.

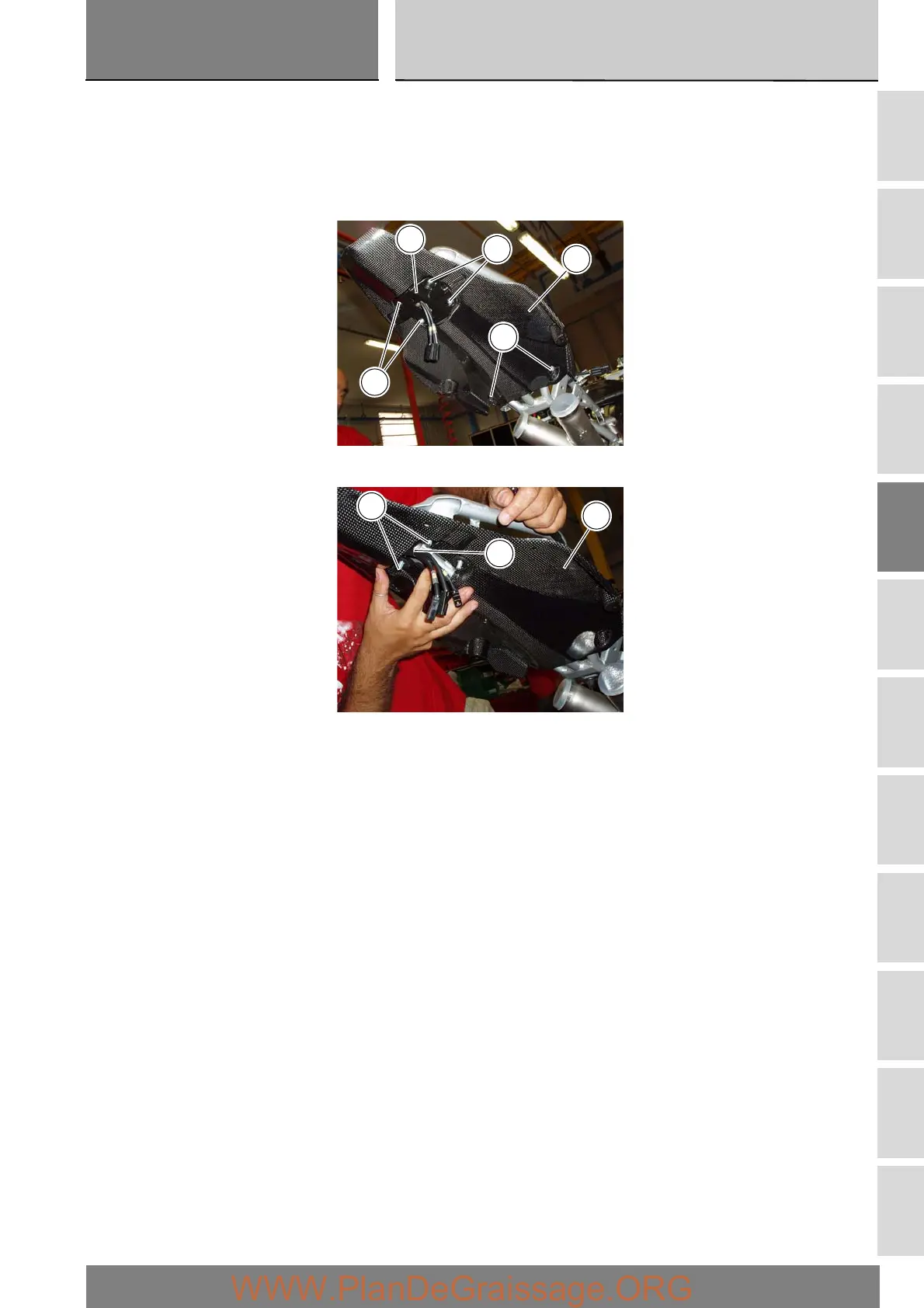

Unscrew the lower front bolts (11) securing the heat shield (19). Undo the retaining nuts (18) and remove the support (17).
Remove the heat shield (19) from the flanges (21), freeing the wiring (D).
18
18
17
19
11
19
21
D
