section
E 3
251098/1098S - M.Y. 2007 - edition 00
Fairings

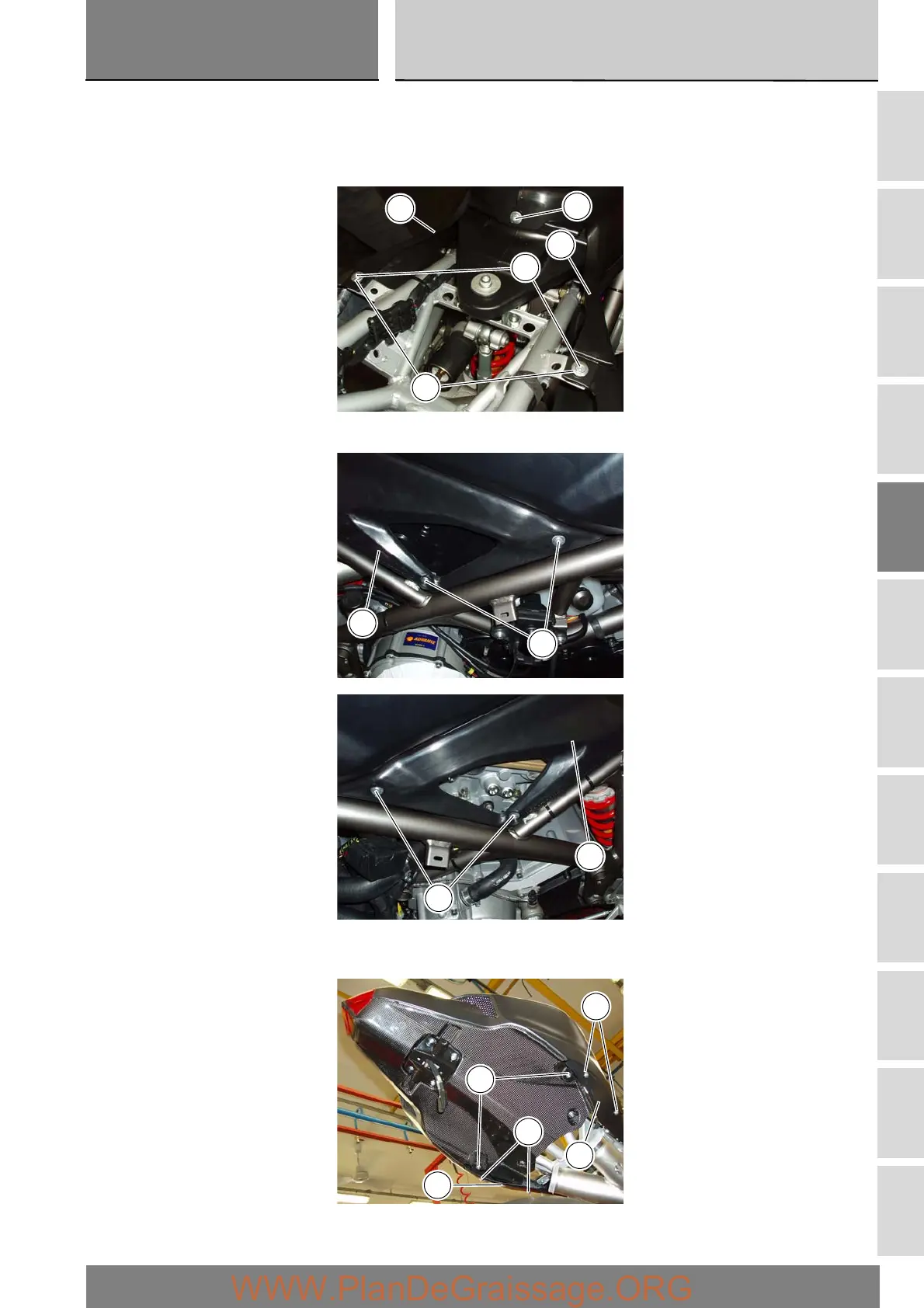

Refitting the side panels
Position the left side panel (9) on the bike first and then the right (10) and fit the screw (11) that connects the two side panels
together and to the fuel tank. Fit the washers (3) on the screws (2) and secure the central parts of the side panels to the rear
subframe.
Refit the two front retaining screws (11) of the right (10) and left (9) side panels.
Fit the four screws (12) securing the rear of the right (10) and left (9) side panels to the rear subframe. Fit the two lateral rear
retaining screws (12). Tighten the screws (11), (2) and (12) to the specified torque (Sect. C 3).
9
11
2
3
10
10
11
11
9
12
12
9
10
12
