section
E 3
24 1098/1098S - M.Y. 2007 - edition 00
Fairings

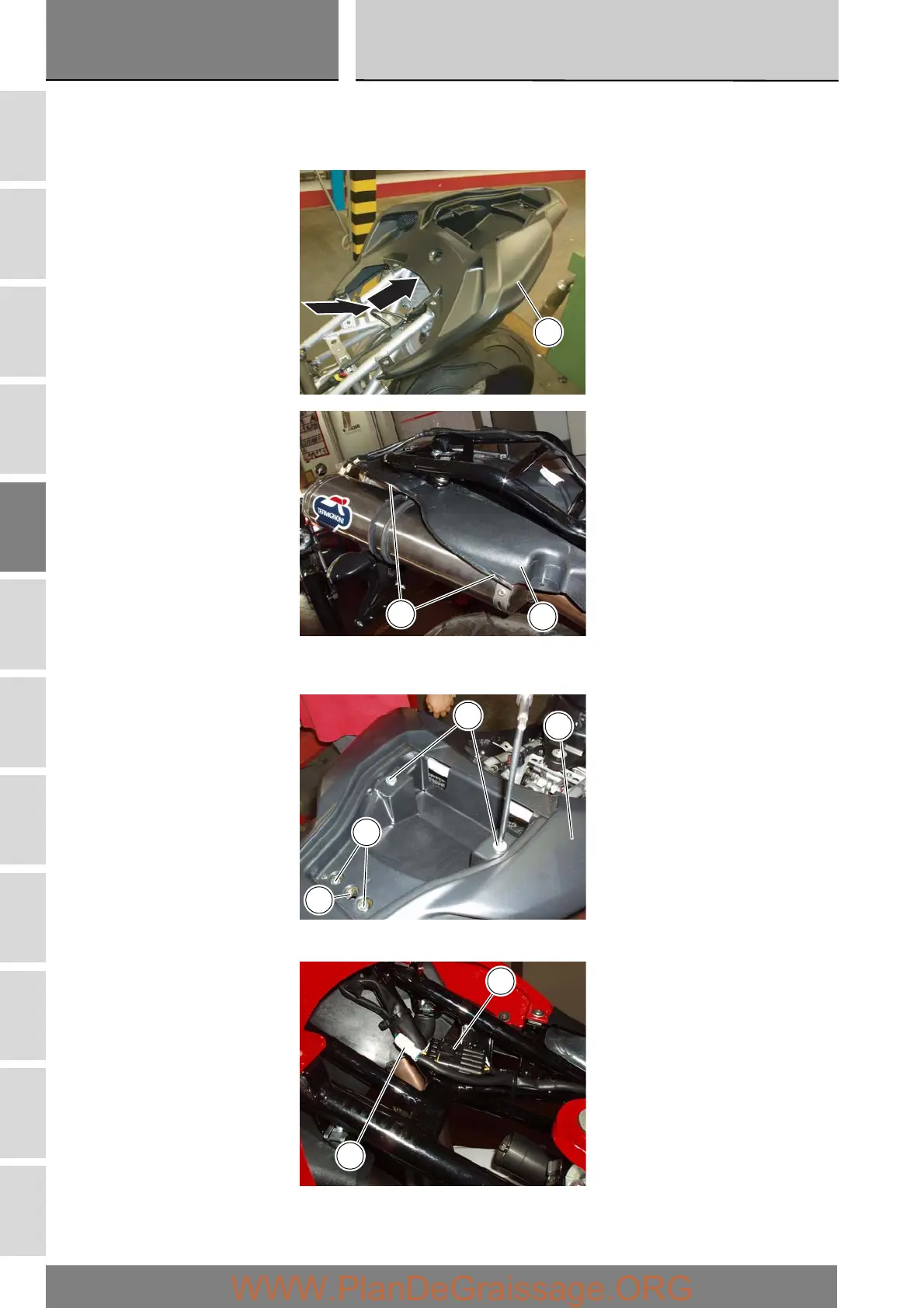

Refitting the seat cowling
Refit the seat cowling (6) to the heat shield (19), pushing the cowling towards the rear of the bike so that it engages the
catches (C) on the shield (19).
Refit the two upper bolts (7) securing the seat cowling (6). Refit the two bolts (8) securing the catch for the lock (16). Tighten the
bolts (7) and (8) to the specified torque (Sect. C 3).
Reconnect the wiring connectors (A) of the rear wiring loom and the connector (B) of the data acquisition wiring.
6
19
C
8
16
7
6
B
A
