section
L 6
18 1098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System

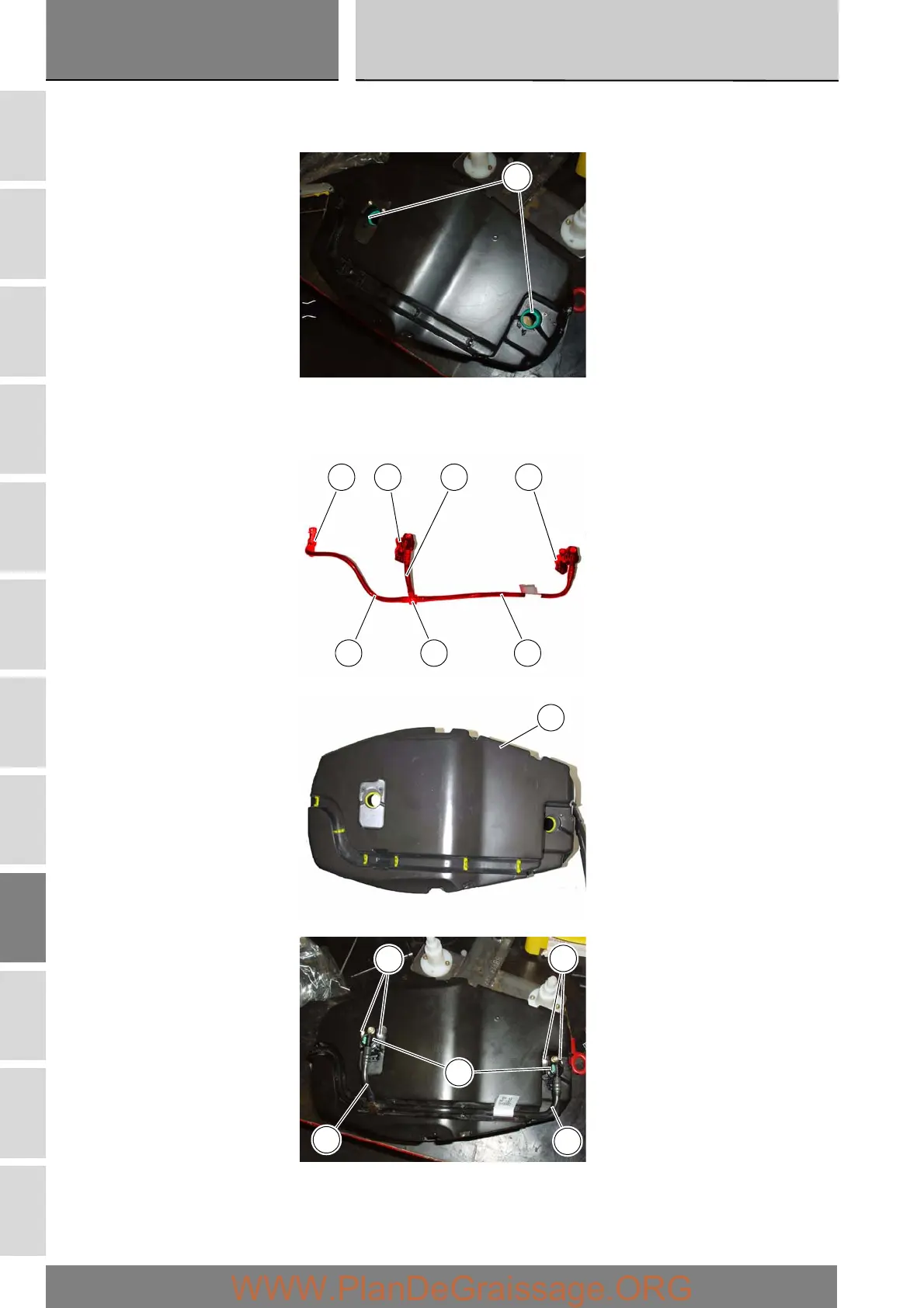

Refitting the injectors
Check that the injector O-ring seals (2) are present.
Position the hoses and unions (5), (6), (14), (15) and (16) with the fuel injectors (13) on the airbox (20) in the corresponding yellow
clips.
Tighten the bolt (3) to the specified torque (Sect. C 3, Frame torque settings).
2
1615
5 13 14 13
6
20
3
3
13
14
16
