Fuel / Exhaust System

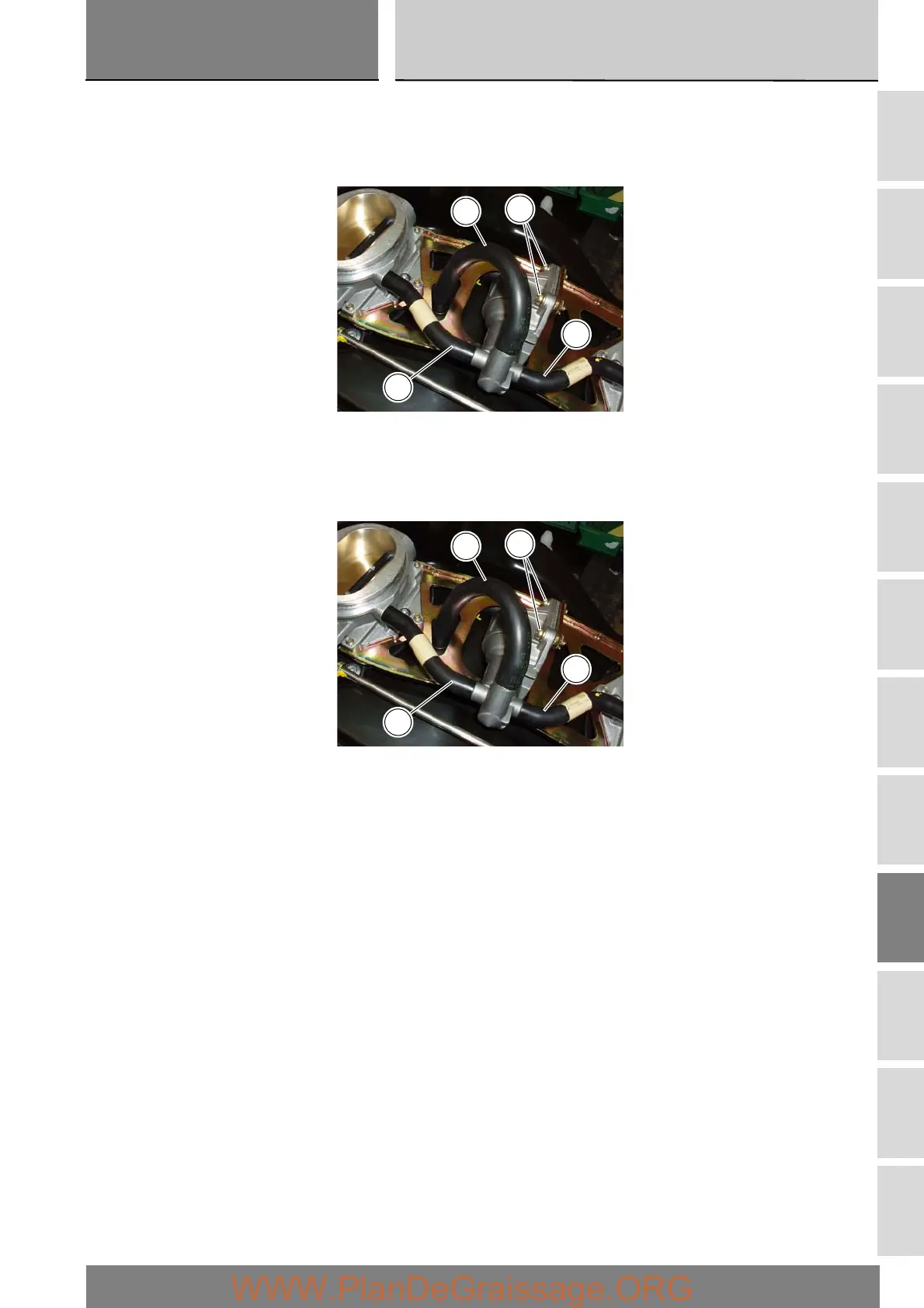

Removal of the stepper motor
The stepper motor is installed in the central part of the throttle body:
to remove it, unscrew the two screws (H) and disconnect the hoses (L) and (M) from the airbox. Refer to Sect. M 3 for details of
stepper motor operation.
Refitting the stepper motor
Reconnect the hoses (L) on the throttle body and the hose (M) to the airbox.
Locate the stepper motor with its support on the throttle body, inserting the bolts (H).
Tighten the bolts (H).
