Fuel / Exhaust System
Disassembly of the airbox – throttle body

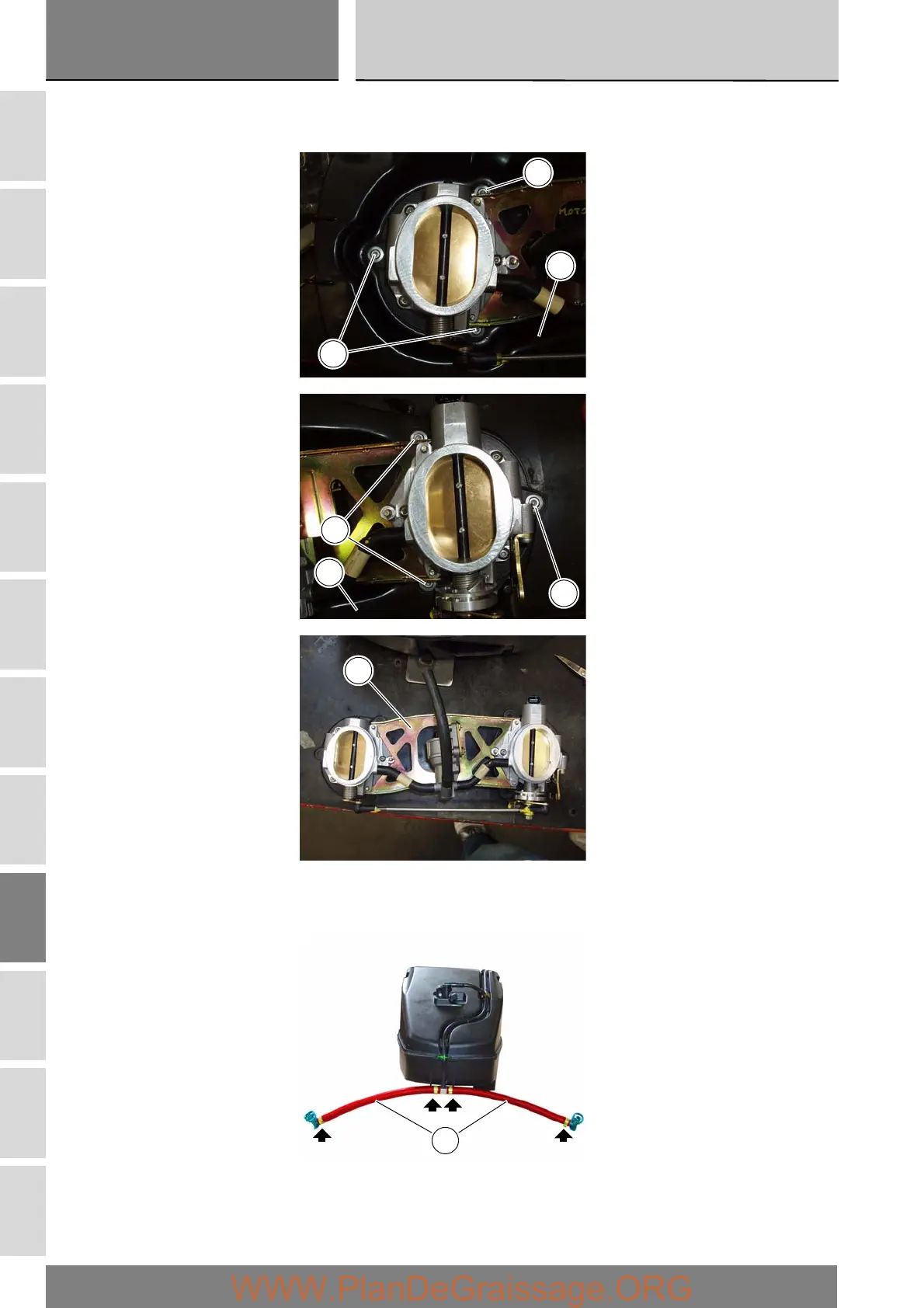

Unscrew the six bolts (8) and remove the throttle body (11) from the airbox (20).
Reassembly of the airbox – throttle body
If removed, refit the fuel hoses (N) with relative quick-release fittings and hose clamps to the airbox as shown.
8
8
20
8
20
8
11
N
