Fuel / Exhaust System

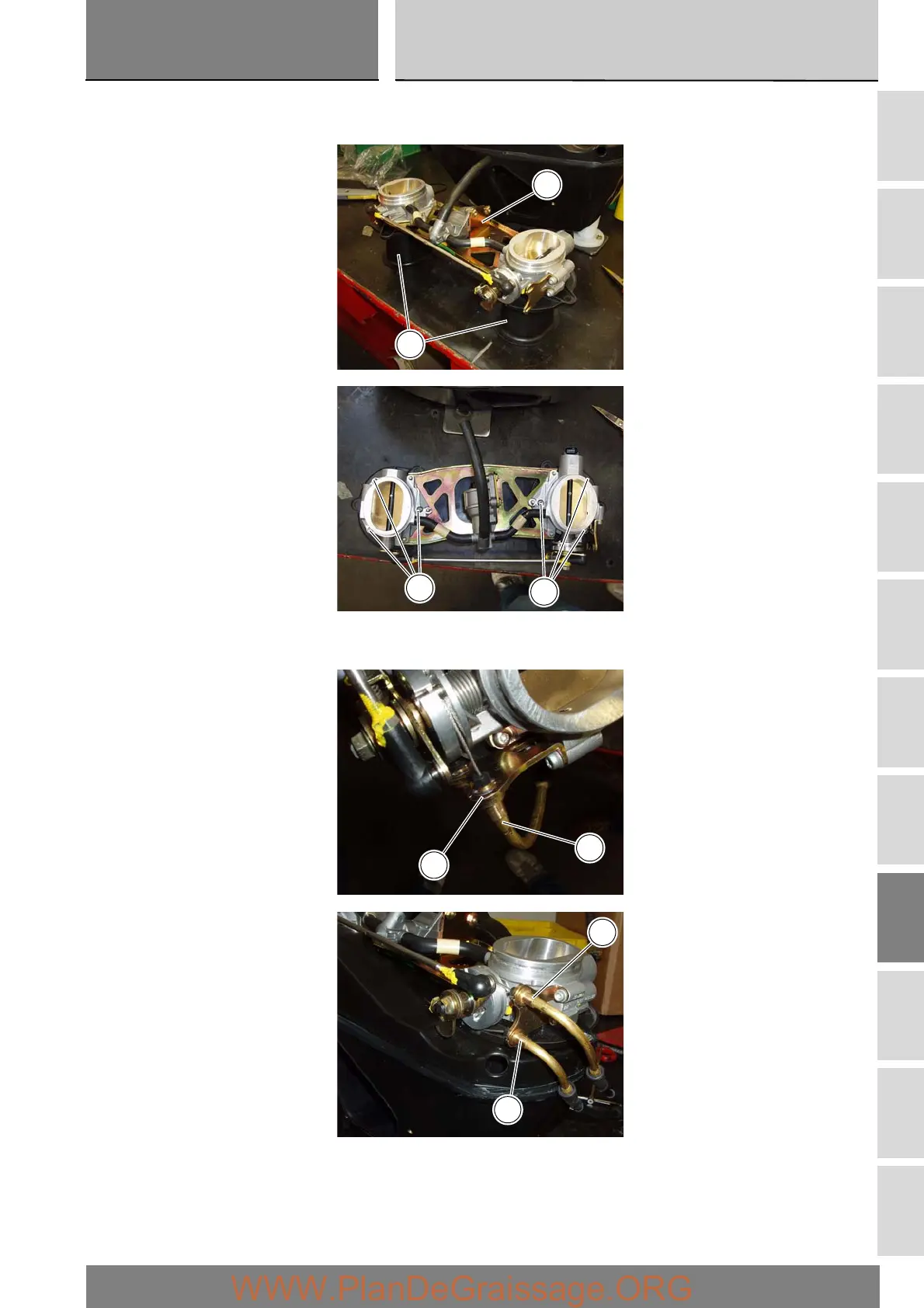

If removed, refit the air intake funnels (7) to the throttle body (11) and tighten the bolts (12) to the specified torque (Sect.C3,
Frame torque settings).
If removed, refit the throttle cables to the throttle body as indicated: insert the throttle opening cable (P) and the throttle closing
cable (Q) in the throttle body plate, as shown in the figure. Secure the throttle cables with two circlips (R).
11
7
12
12
P
R
Q
P
