Injection - ignition system

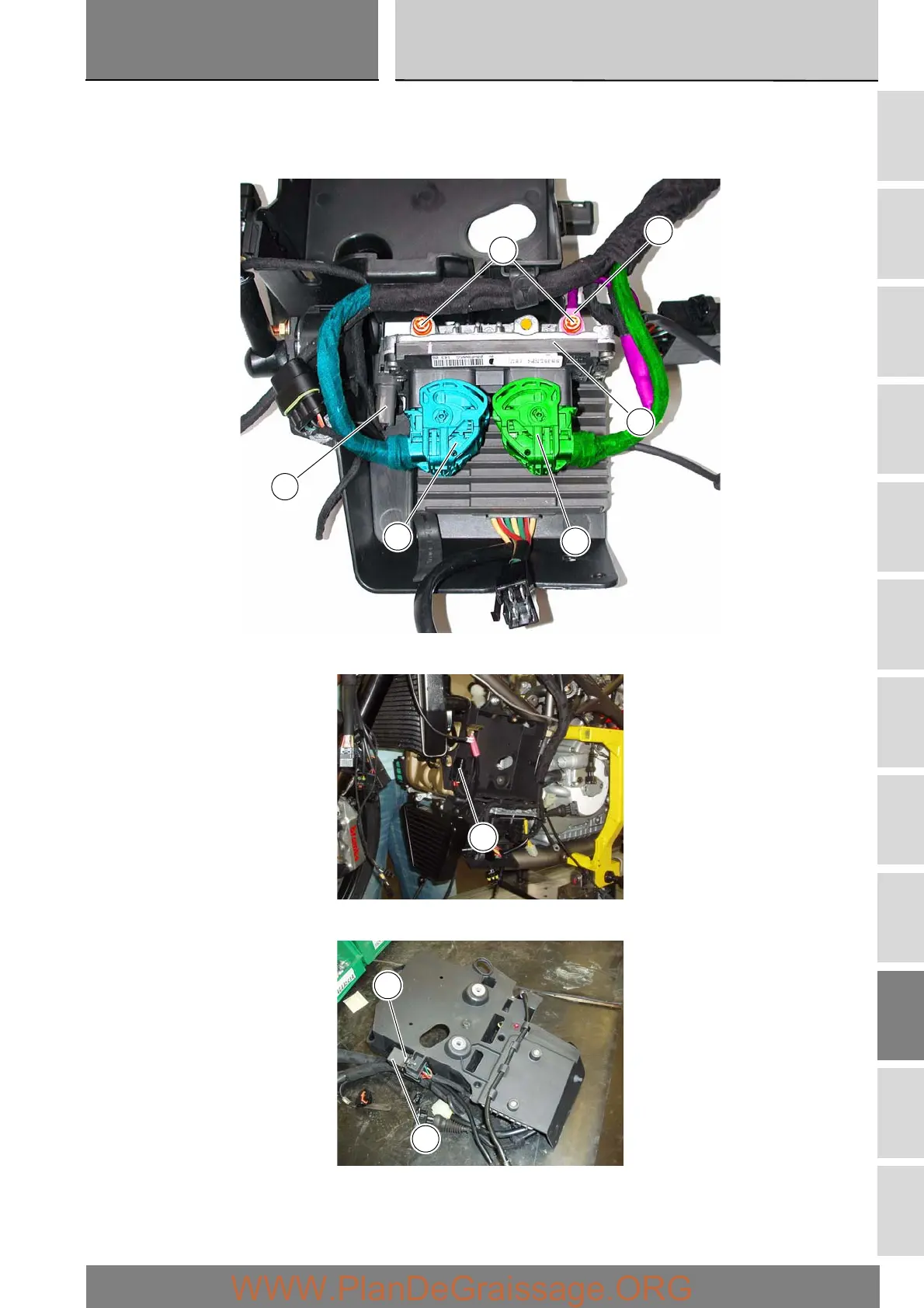

Disconnect the two wiring connectors (8) and (9) from the ECU.
Undo the screws (10) and remove the ECU (1), freeing from the ECU earth lead (C).
Detach the wiring connector of the contactor (13) with the fixing device from the battery support.
To remove the contactor, proceed as described in Sect. P 2.
Remove the regulator fuse (14) from the battery support, withdrawing through the holes provided.
Undo the screw (11) and remove the injection and fans relay (12).
8
9
13
C
1
10
14
12
11
