M 3
8 1098/1098S - M.Y. 2007 - edition 00
Injection - ignition system

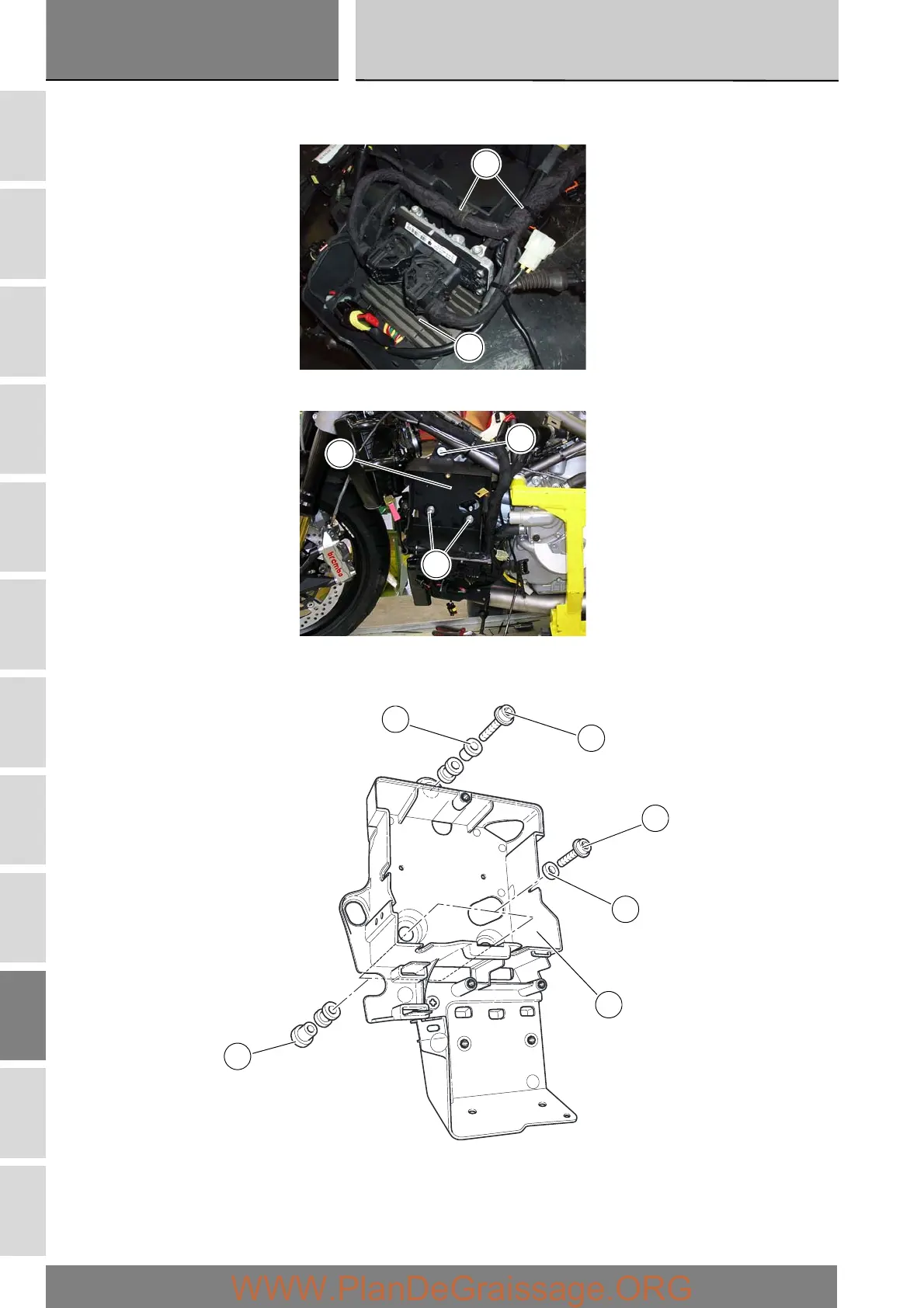

Release the wiring from any cable ties (D).
To remove the rectifier (15), proceed as described in Sect. P 2.
Undo the bolts (16) securing the battery support (17) to the frame.
Recover the spacers (18) and the washer (19).
Remove the battery support from the motorcycle.
15
D
17
16
16
18
16
18
16
19
17
