Injection - ignition system

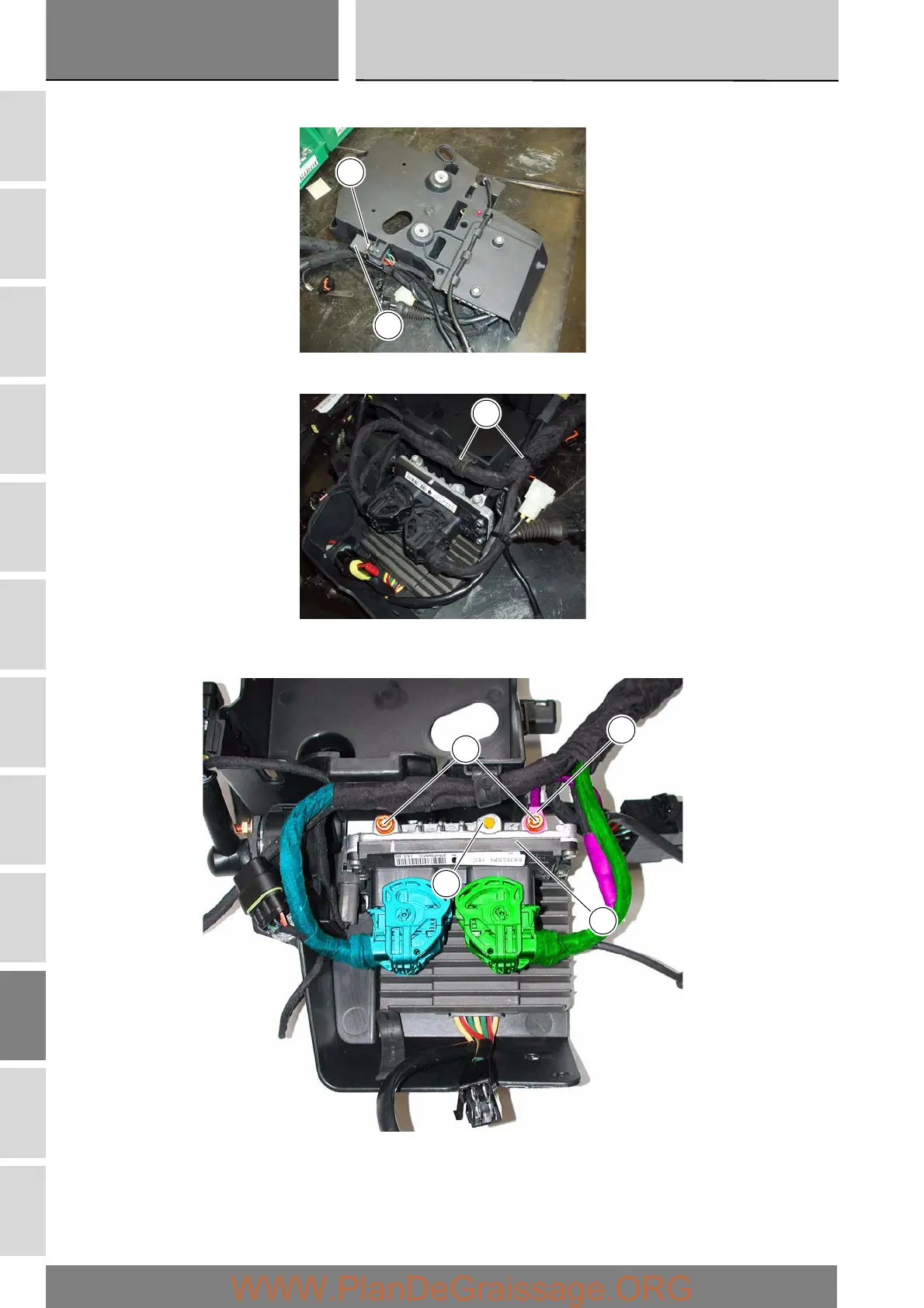

Refit the injection and fans relay e (12), insert the screws (11) and tighten to the specified torque (Sect. C 3).
Fasten the main branch of the wiring loom to the battery support with the relative clips (D).
Position the ECU so that the threaded hole (E) is facing upwards; insert the retaining screws (10) with the ECU earth connector
(C) under the right-hand screw, and tighten to the specified torque (Sect. C 3).
12
11
D
E
C
1
10
