section
N 3.2
271098/1098S - M.Y. 2007 - edition 00
Engine

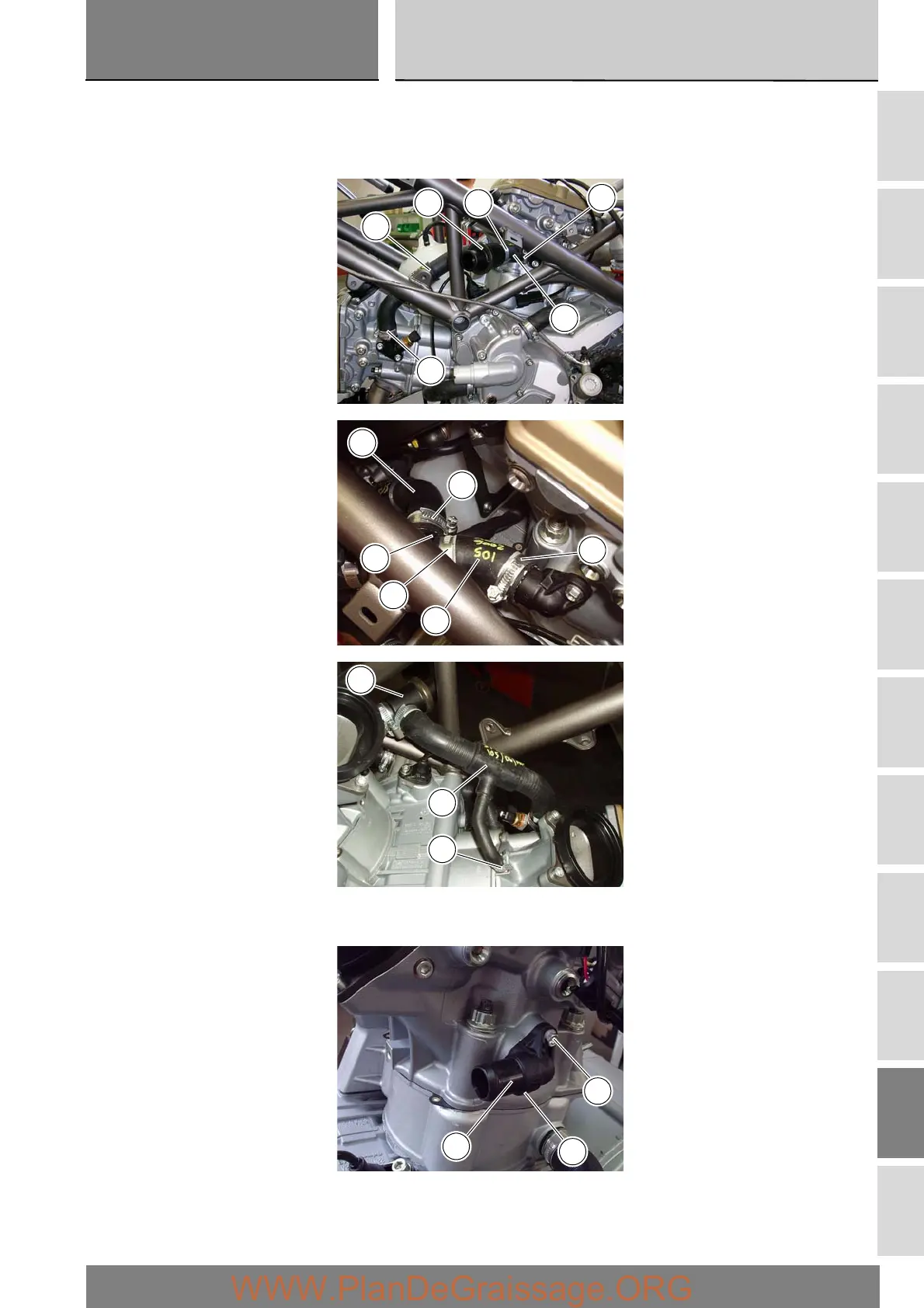

Loosen the clamps (14) and (17) securing the thermostat assembly (16) – thermostat/cylinder head hose (18) - thermostat/cylinder
head hose (22).
Loosen the clamps (14) to dismantle the thermostat assembly (16) – thermostat/cylinder head hose (18) - thermostat/cylinder
head hose (22).
Undo the bolts (12) and remove the union (20).
Recover the O-rings (19) located between the union and the vertical cylinder head.
14
14
18
1416
22
14
16
22
14
14
18
16
22
17
12
12
20
