N 3.2
28 1098/1098S - M.Y. 2007 - edition 00
Engine

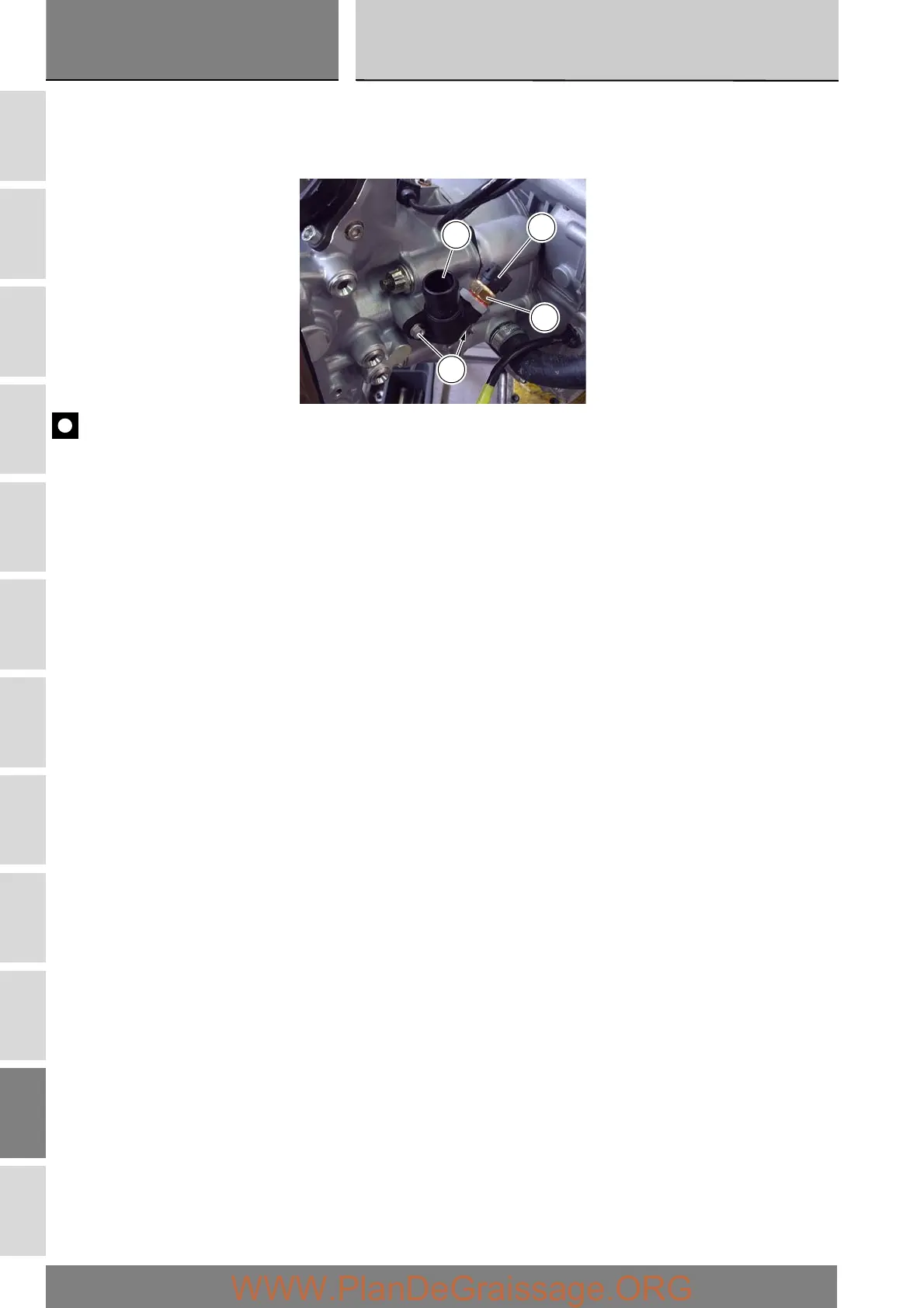

Disconnect the wiring connector (A) of the temperature sensor (21) on the horizontal cylinder head union (1) from the main wiring
loom.
Unscrew the bolts (12) and remove the horizontal cylinder union (1).
Recover the O-rings (19) located between the union and the horizontal cylinder head.
Important
Periodically check the connection hoses for signs of leaks.
Hoses that are cracked, swollen, or hardened should be renewed.
21
A
1
12
