N 3.3
34 1098/1098S - M.Y. 2007 - edition 00
Engine

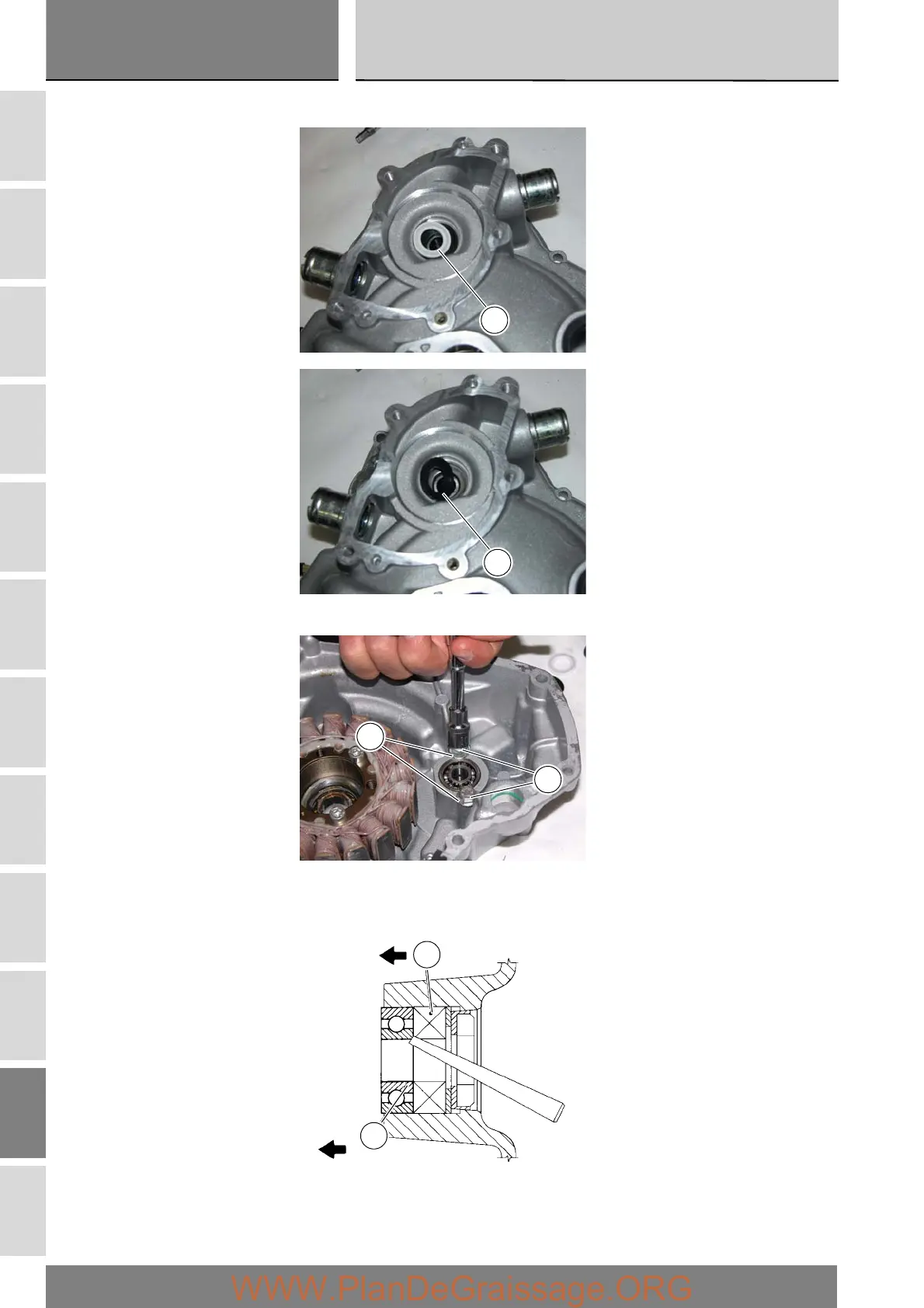

Recover the ceramic washer (A) and seal ring (B) located on the inner side.
Undo and remove the screws (1) with washer (2).
Working from the impeller side, use a suitable drift to press on the inner race of the bearing (5) until it can be extracted from the
cover.
Use the same technique to remove the other bearing (6).
A
B
1
2
6
5
