section
N 3.3
371098/1098S - M.Y. 2007 - edition 00
Engine

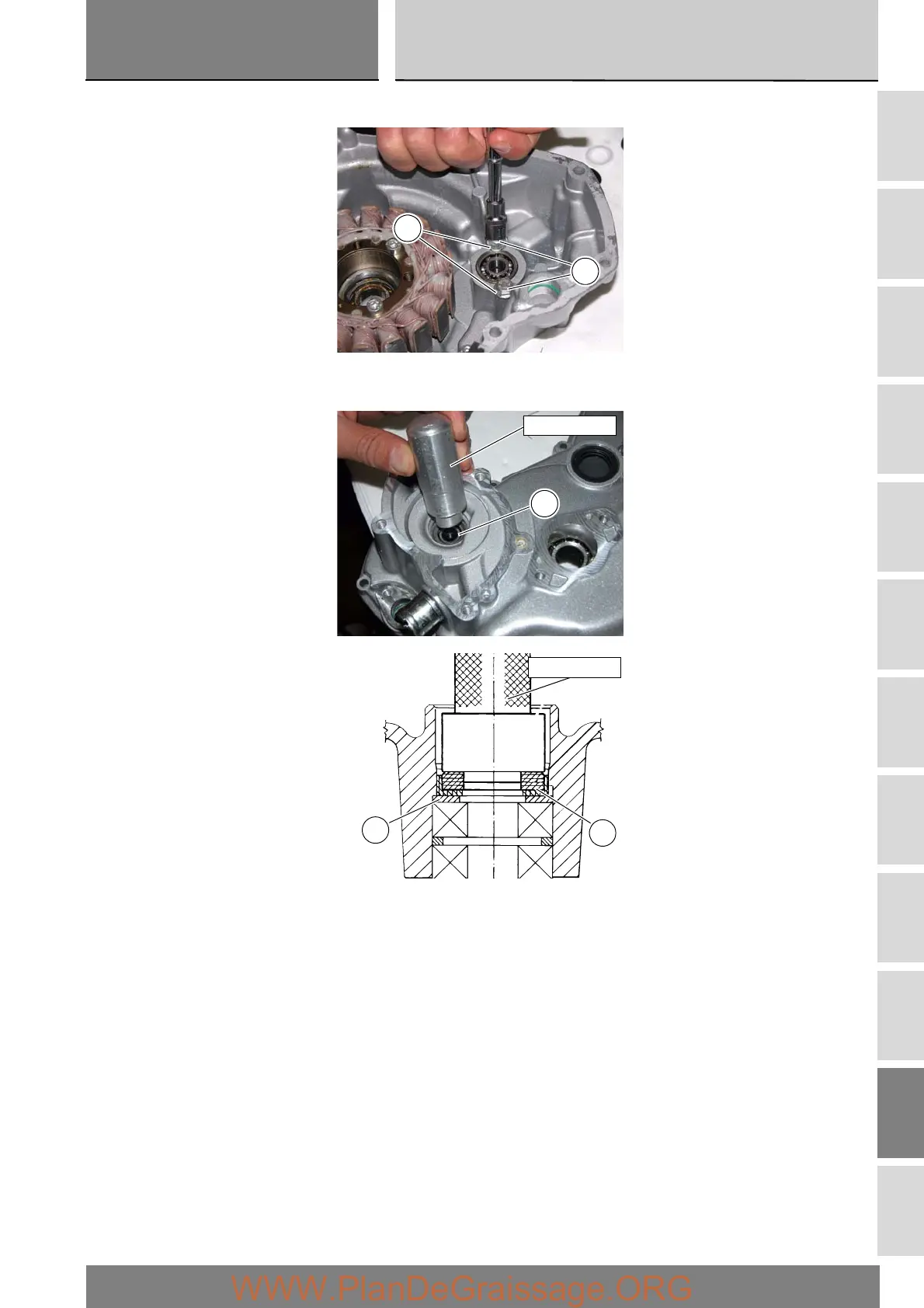

Fit the two screws (1) with washer (2) and tighten them to the specified torque (Sect. C 3).
Turn over the cover and use drift part no. 88713.0870 to install the seal seat (8), oriented as shown in the figure, fully home
against spacer (7).
1
2
8
88713.0870
88713.0870
7
8
