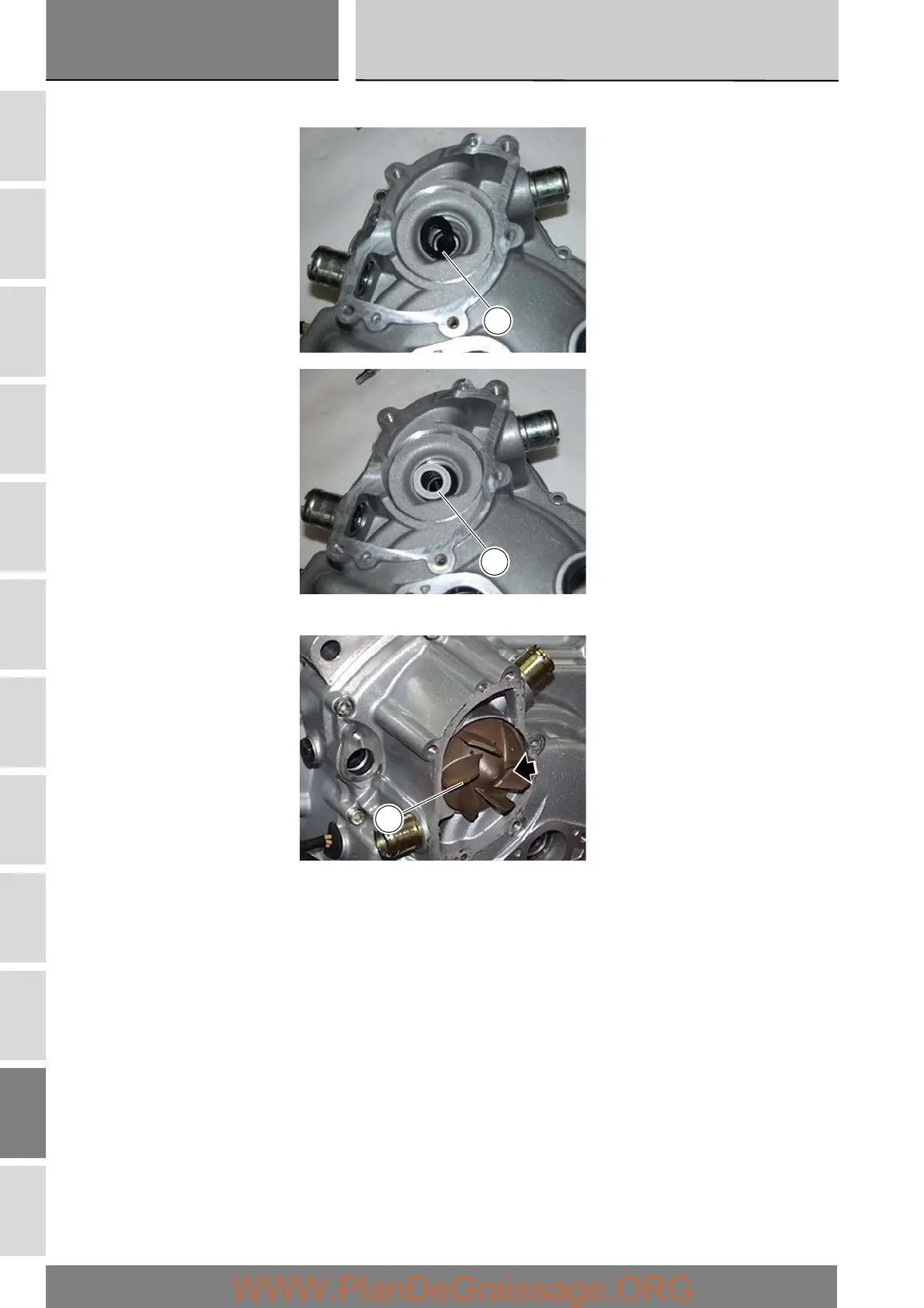

Fit the seal ring (B) and the ceramic washer (A).
Insert the impeller shaft (10) with the mechanical seal (9). Turn the cover over.
B
A
10
