Engine

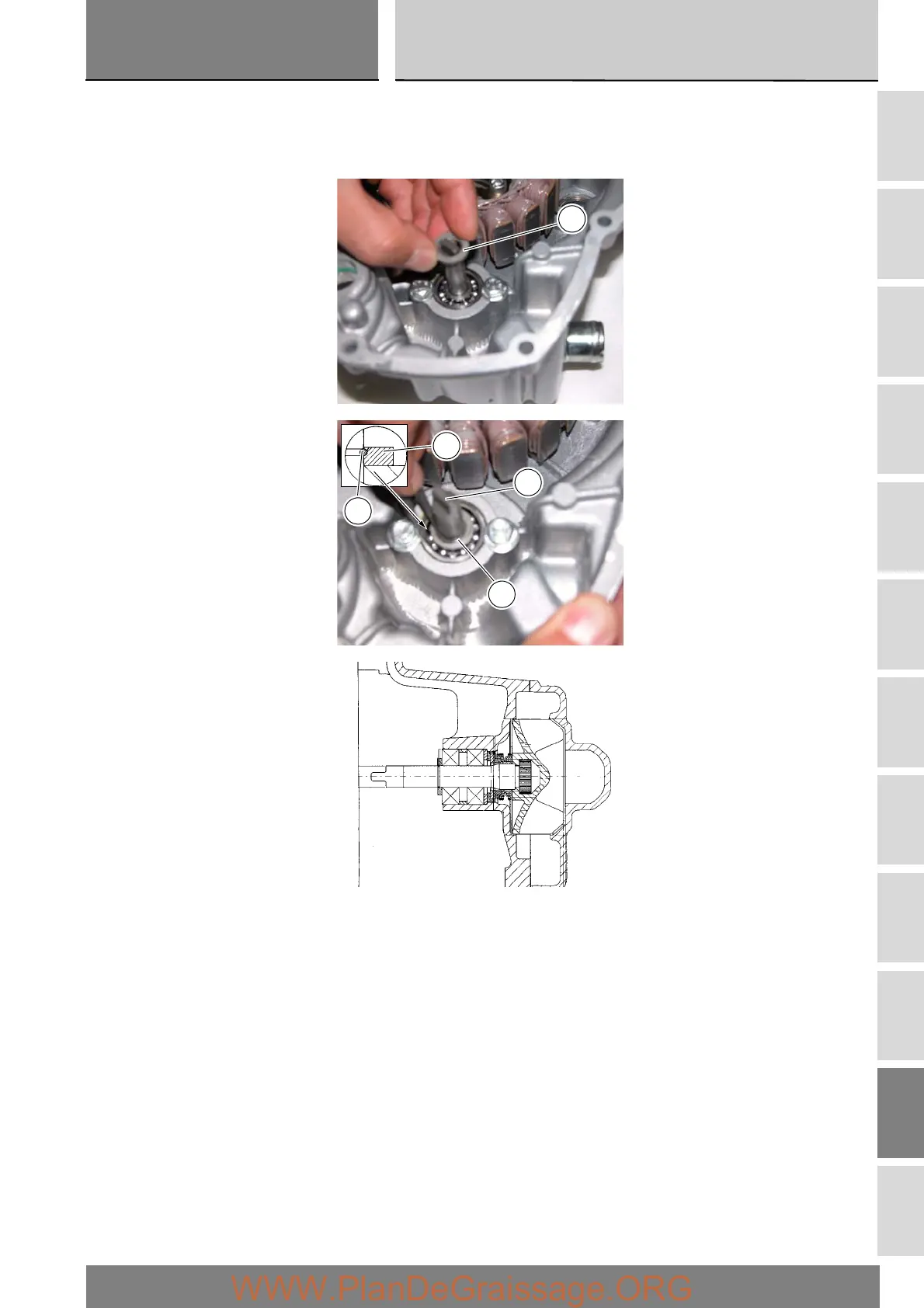

Insert the impeller shaft (10) with the mechanical seal. Turn the cover over.
Fit the spacer (4), positioned as shown in the cross-sectional view, and secure with the circlip (3).
Rotate the impeller (5) and make sure it turns smoothly without sticking.
Clean the mating surfaces thoroughly on the pump cover and on the left-hand side crankcase cover.
