Engine

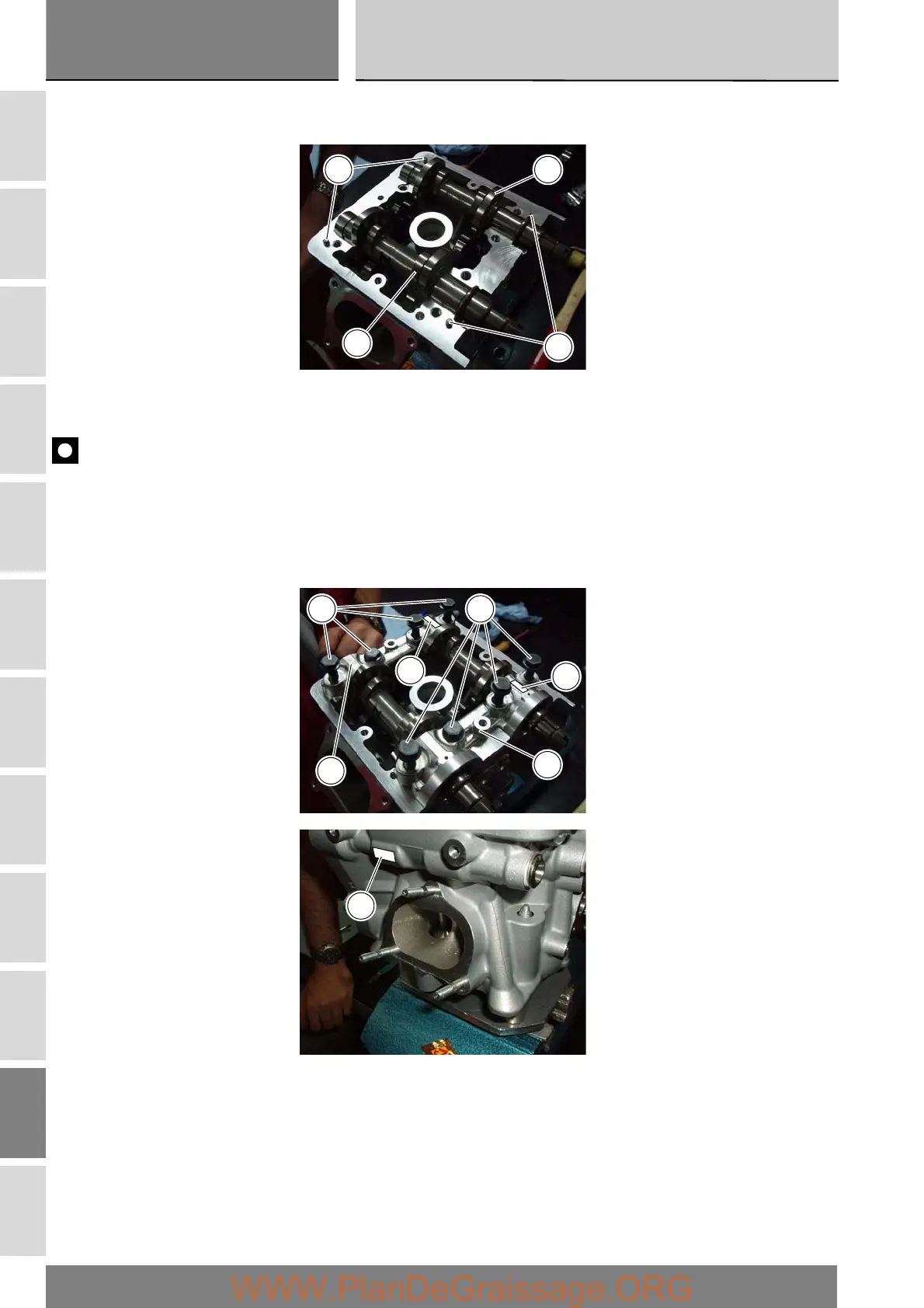

Install the camshafts (14) and (15) in the cylinder head, and rotate them to distribute the lubricant evenly.
Check that the locating dowels (11) are present.
Fit the supports (22) and (23) to the cylinder head, checking that the number stamped in zone (B) of the cylinder head is the same
as the number stamped in zone C (C) of the supports.
Important
The support (22) must be installed on the timing side.
Bed down the supports.
Apply engine oil to the threads and undersides of the heads of the bolts (3).
Insert the bolts (3).
11
11
14
15
33
22
23
C
C
B
