N 4.4
731098/1098S - M.Y. 2007 - edition 00
Engine

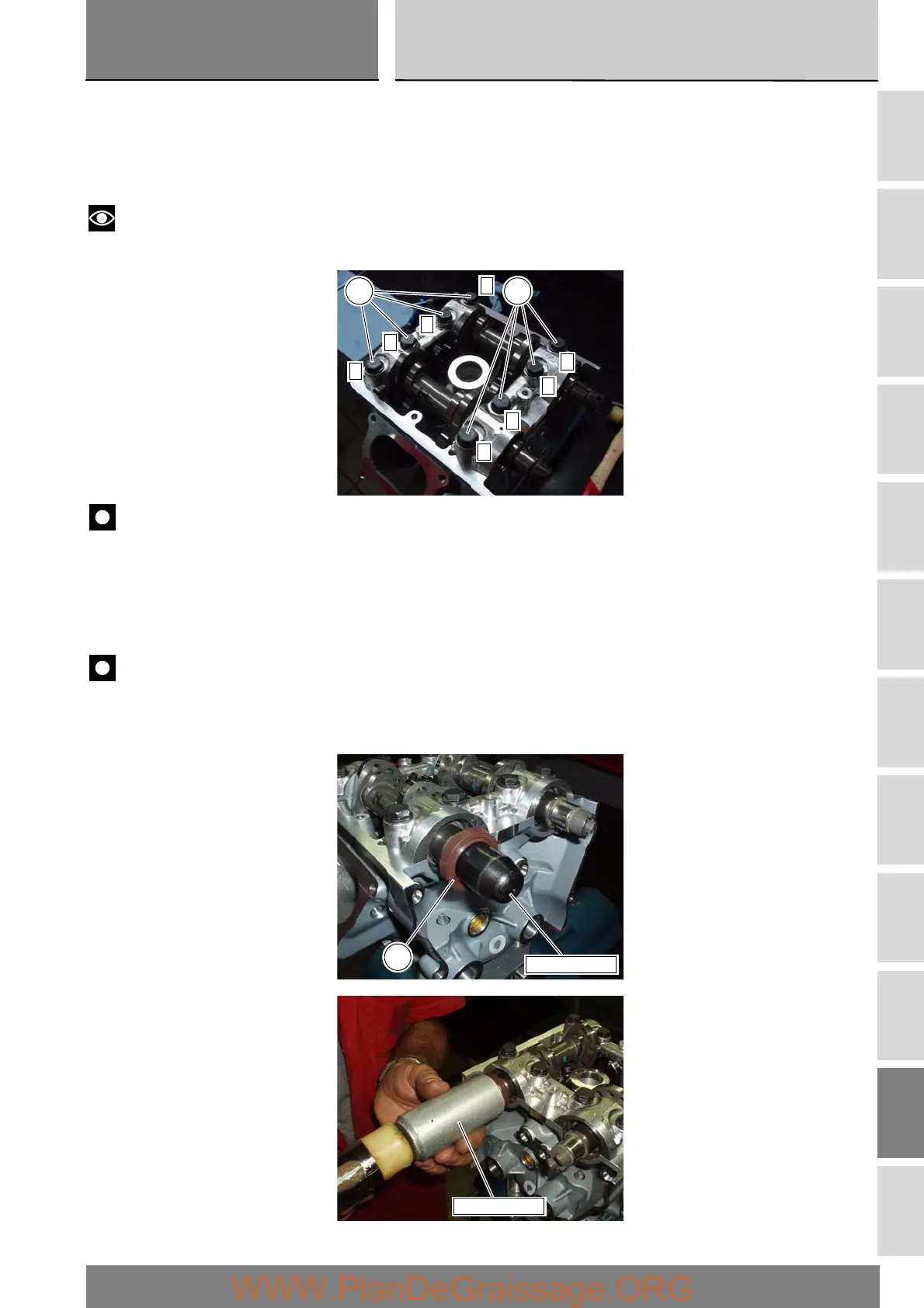

Tighten the bolts (3) to the specified torque (Sect. C 3, engine tightening torques).
Pre-tighten one support at a time, working in the sequence 1-2-3-4-5-6-7-8.
Then tighten the bolts to the specified torque (Sect. C 3, engine tightening torques).
Tighten one support at a time, working in the sequence 1-2-3-4-5-6-7-8.
Remove any excess sealant from between the cylinder head and the support.
Turn the camshafts by hand to check that they rotate freely.
Notes
The bolt (3) in position 1 must always be installed on the intake and timing side.
Important
Check the valve lift as described in Sect. N 4.1.
Oil seals
Lubricate the oil seals (17) with denatured alcohol.
Fit the installer supplied with the service tool no. 88713.2861 on the camshaft and insert the oil seal in the cylinder head with the
spring side.
Important
Always fit new oil seals on reassembly.
Use the drift provided with the tool and a mallet to seat the oil seals.
33
5
7
6
8
4
2
1
3
17
88713.2861
88713.2861
