Engine

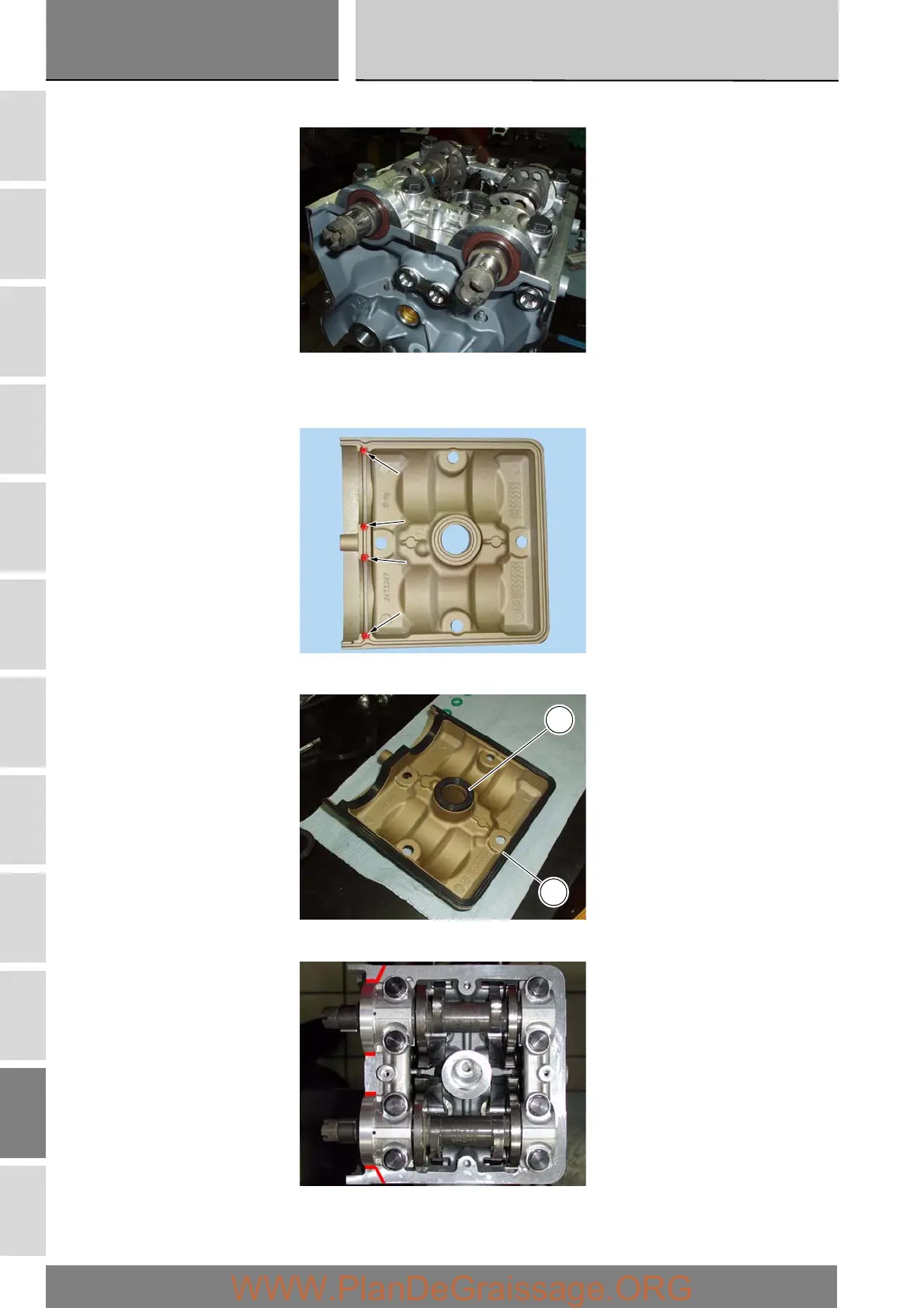

When correctly installed, the oil seal should be flush with the bevel of the cylinder head bore.
Rocker cover
Apply sealant (Three Bond 1215 liquid gasket) at the four points of the rocker cover shown in red in the photo.
Fit the gaskets (4) and (9) on the rocker cover, as shown in the figure.
Apply sealant (Three Bond 1215 liquid gasket) at the four points of the cylinder head shown in red in the photo.
