Engine

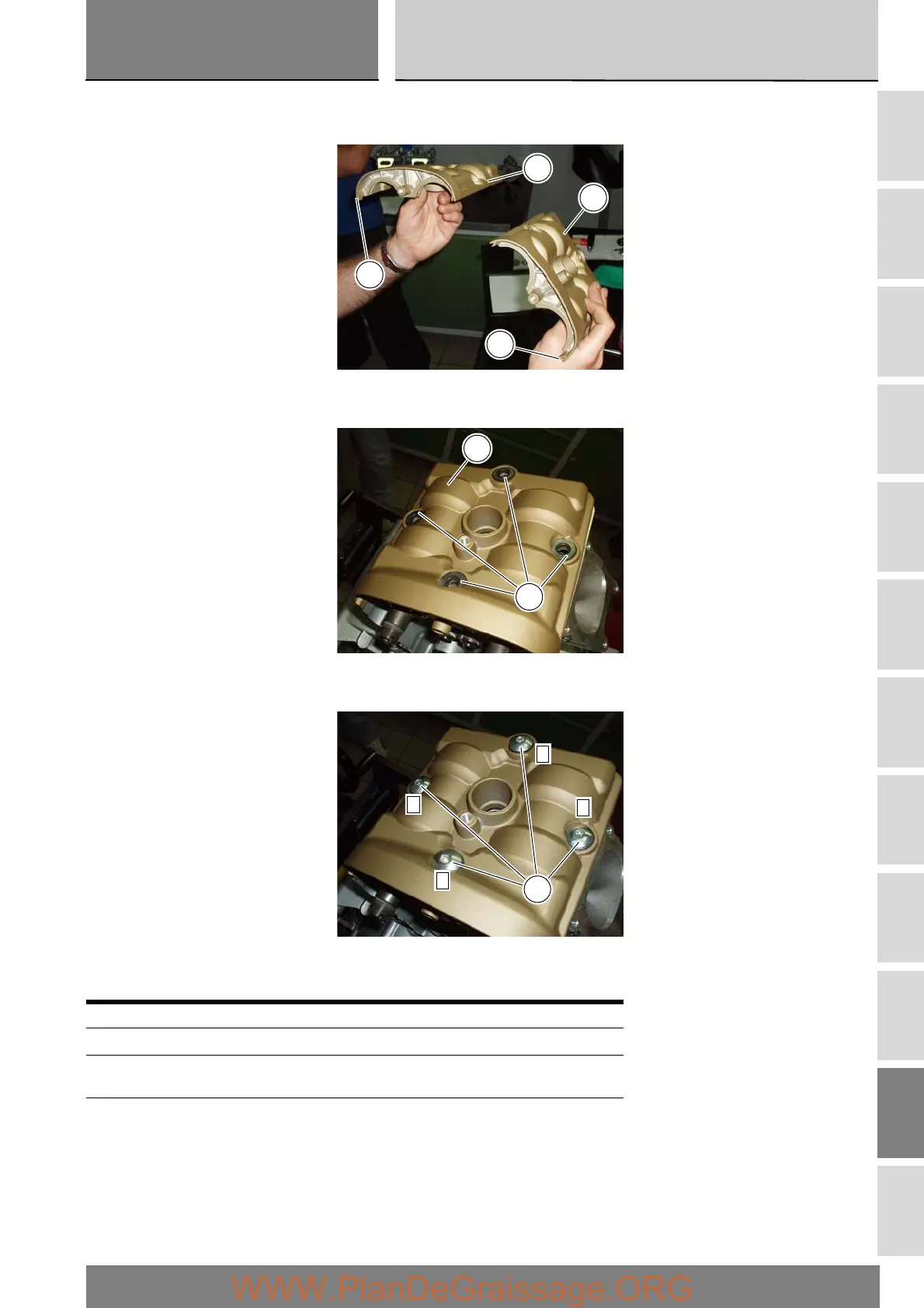

Rocker cover identification: the vertical head rocker cover (6) has a nib (A) on the left-hand side (exhaust side), whereas rocker
cover (5) has a nib (B) on the right-hand side (exhaust side).
Locate the cover (6) on the cylinder head, aligning the four fixing holes.
Install the four washers (8) in the cover fixing holes, with the rubber sides facing the cover.
Insert the bolts (7).
Tighten the bolts (7) to the specified torque (Sect. C 3, engine tightening torques) in the indicated sequence.
Remove excess sealant from the area of application.
Repeat the same procedure for the other cylinder head.
Refit all the components removed in the procedure.
Operation Section reference
Refit the engine lubrication system N 2.1
Refit the timing belt pulleys, timing belts
and the timing belt covers
N4.2
Refit the engine to the frame N 1
