section
N 4.4
76 1098/1098S - M.Y. 2007 - edition 00
Engine

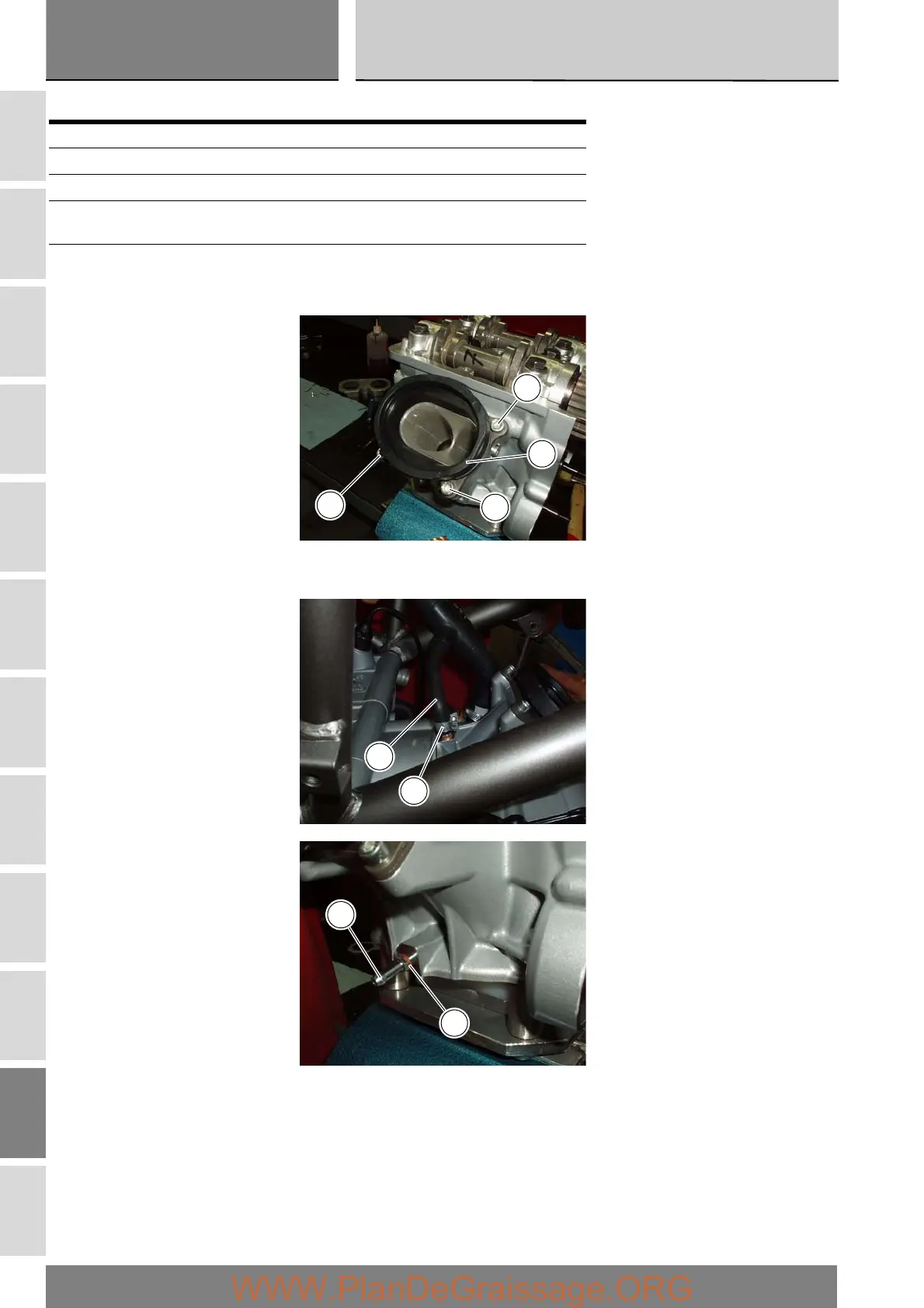

Removal of the intake manifold and coolant union
Remove the manifolds (25) by undoing the bolts (21).
Loosen the clamp (A) and remove the hose (B).
Remove the union (12) and recover the seal (24).
Operation Section reference
Remove the side fairings E 2
Remove the radiator N 3.2
Remove the fuel tank/seat cowling
assembly
E3
Remove the airbox L 6
21
21
21
25
A
B
24
12
