section
N 4.5
911098/1098S - M.Y. 2007 - edition 00
Engine

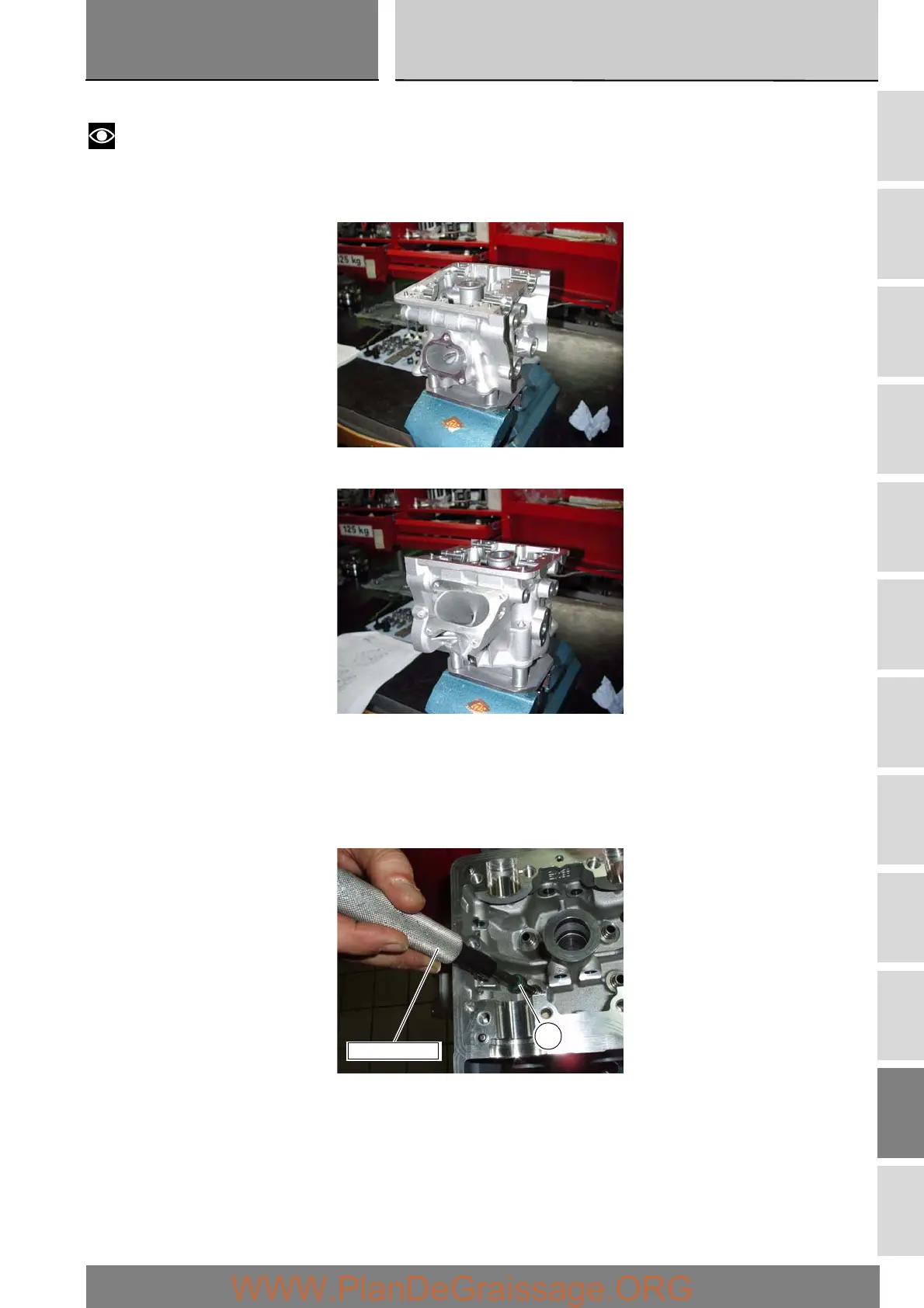

Reassembly of the cylinder head
Notes
The cylinder heads are identical. Only the definition of the intake and exhaust side determines whether they are to be installed
on the vertical or horizontal cylinder.
The exhaust side can be identified by the three threaded holes on the flange.
The intake side can be identified by the presence of four threaded holes on the flange.
All the photos in this chapter refer to a vertical cylinder head.
Valve guide seals
Position the cylinder head on the service stand 88713.2103.
Use alcohol to lubricate the valve guide seals (8) and insert them from the spring side onto tool 88713.2442.
Fit the end of the tool into the valve guide and use a mallet to tap the seals (8) home into the valve guides.
88713.2442
8
