Engine
Reassembly of the closing rocker arms.
Check that the rocker arms are not scored or show signs of breakage in the area of contact with the camshaft and shim.
The closing rocker arm shafts are 10 mm in diameter, whereas the opeining rocker arm shafts are 9 mm in diameter.

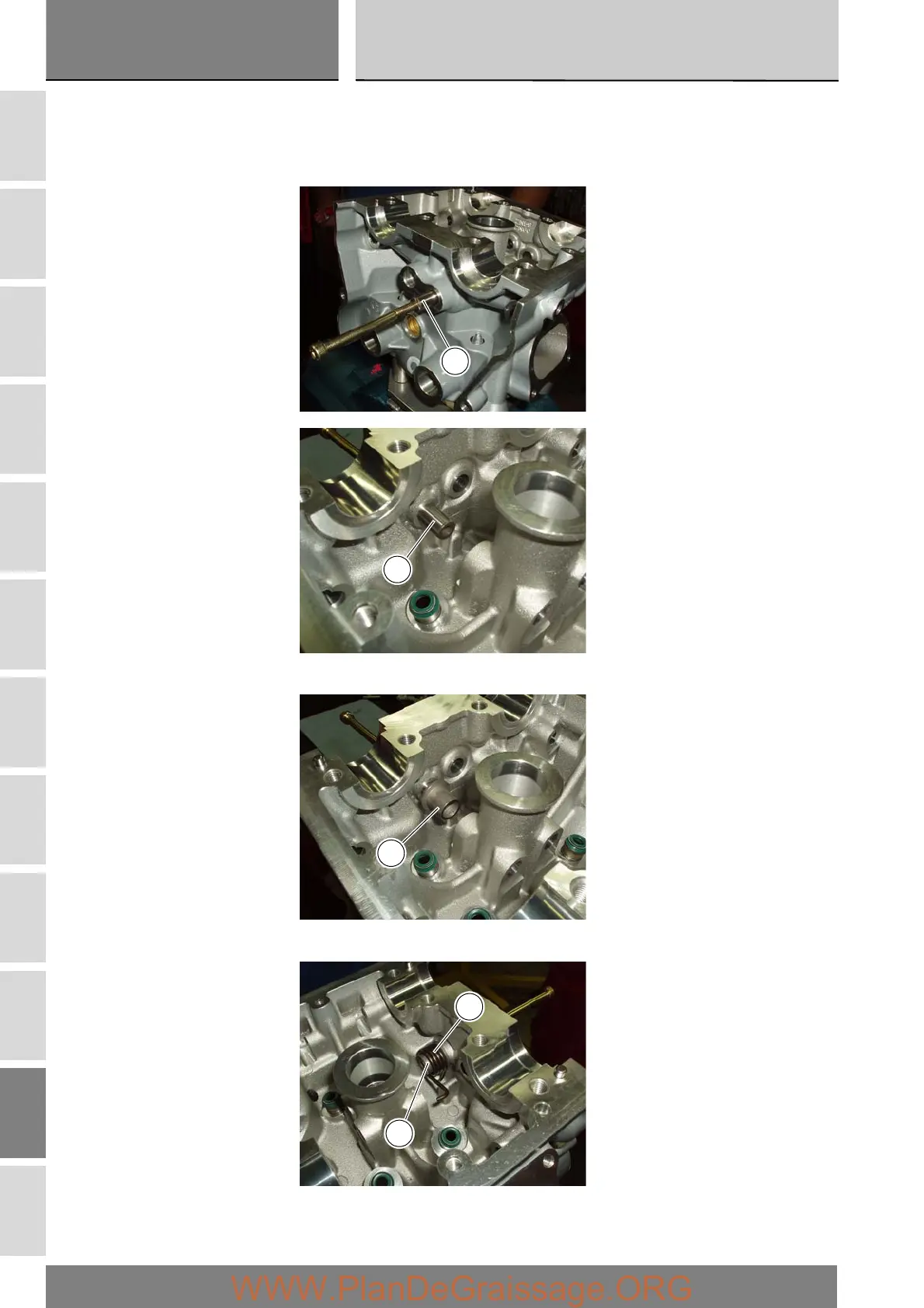

Using an M5 bolt, position the closing rocker shaft (1) towards the exhaust side of the cylinder head.
Locate the spacer (17) on the shaft.
Locate the spring (18) on the spacer (17).
