section
N 4.5
931098/1098S - M.Y. 2007 - edition 00
Engine

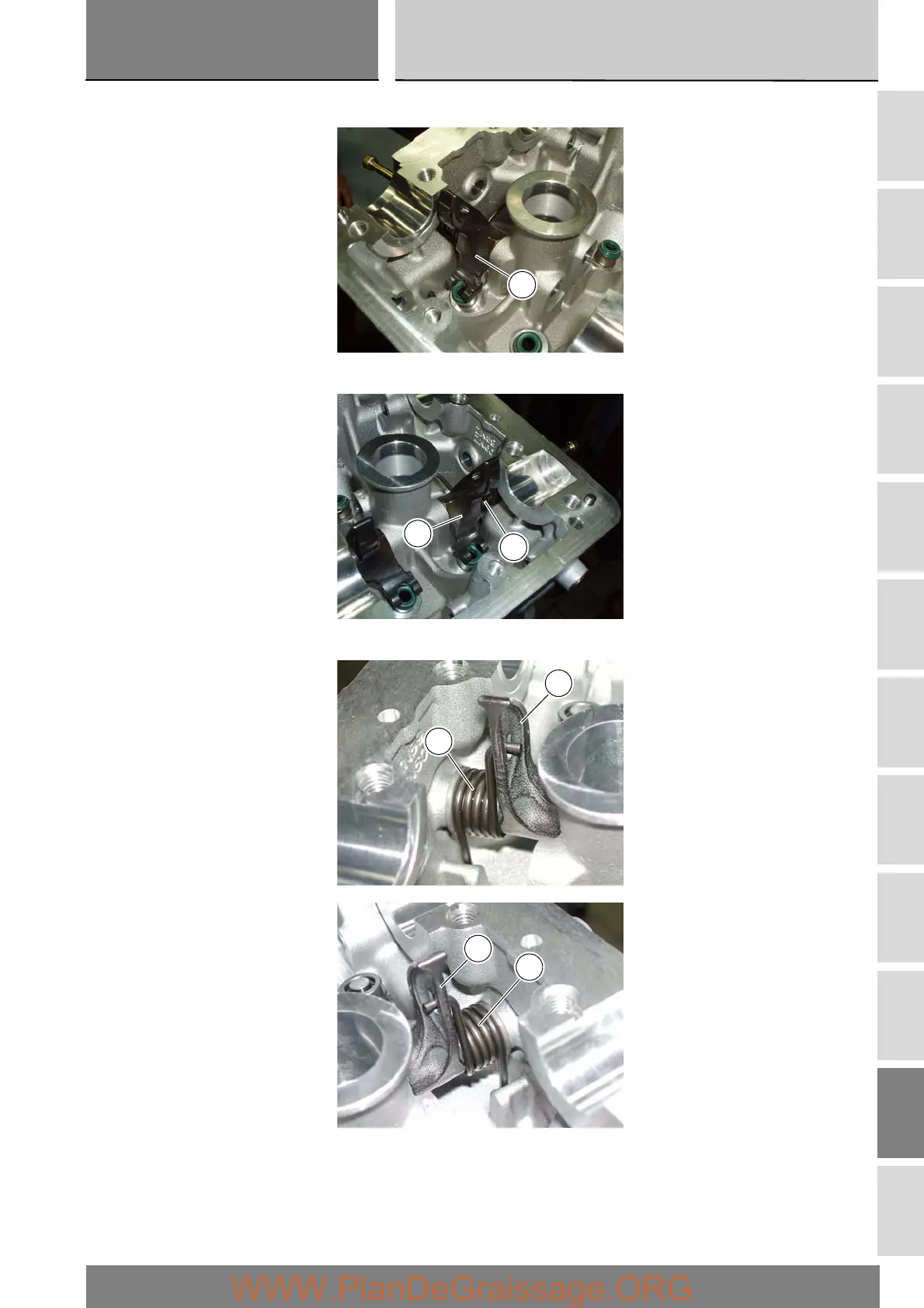

Locate the closing rocker arm (16) and drive the shaft home.
Proceed in a similar manner to install the closing rocker arm (4) with the spring (19) from the exhaust side.
Load the springs (18) and (19) on the closing rocker arms (16) and (4) respectively using service tool no. 88713.2069.
16
4
19
18
16
4
19
